55.33.9.125.0080 Finder Control Relays

55.33.9.125.0080 on Powermatic Associates
Finder

Part#:55.33.9.125.0080

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

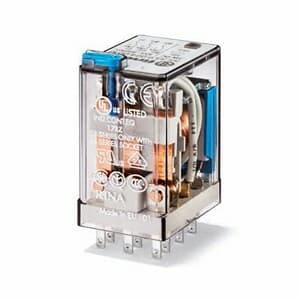

Finder 55.33.9.125.0080 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), suitable for ambient air temperatures ranging from -40 to +85 degrees Celsius for operation and is designed for a rated voltage of 125Vdc and 250Vac with a control voltage of 4 kV. The relay features a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm, and a power consumption footprint of 20.7 mm. It supports a plug-in mounting mode and utilizes a diode for its cross-section. The relay is capable of up to 200,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations, with contact material made of AgNi (Silver Nickel).

Product Details

  • Main function
    Relay
  • Connection type
    Solder pin
  • Technology used in component
    Diode
  • Mechanical durability (at no load)
    50 000 000 operations
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Electrical durability (with load)
    200 000 operations
  • Net Width (mm)
    27.7 mm
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    3 Pole(s)
  • Mounting mode
    Plug-in
  • Rated impulse voltage (Uimp)
    4 kV
  • Product series / family name
    55 Series
  • Control Voltage (DC)
    125Vdc
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi (Silver Nickel)
  • Net Depth (mm)
    20.7 mm
  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Height (mm)
    37.2 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

55.33.9.125.0080 Related Documents

Finder - 55 Series - Catalogue.pdf
