55.34.8.110.5040 Finder Control Relays

55.34.8.110.5040 on Powermatic Associates
Finder

Part#:55.34.8.110.5040

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

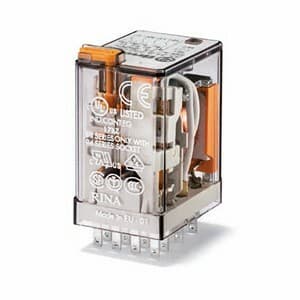

Finder 55.34.8.110.5040 is a relay with solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1) and 7A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), operates within an ambient air temperature range of -40 to +85 degrees Celsius for both operation and storage, and is designed for a rated voltage of 250Vac with a control voltage of 4 kV. The relay features a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm, a power consumption dimension of 20.7 mm, and is colored for 110Vac (50Hz/60Hz) applications. It has a plug-in residual current sensitivity, supports up to 150,000 operations for Normally Closed (NC) circuits, and is rated for 20,000,000 operations with contacts made of AgNi+Au (Gold plated silver-nickel).

Product Details

  • Product series / family name
    55 Series
  • Poles
    4 Pole(s)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Width (mm)
    27.7 mm
  • Rated current
    7A (250Vac; AC-1) 7A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Rated voltage (AC)
    250Vac
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Main function
    Relay
  • Rated power
    350VA (230Vac; AC-15) 1750VA (250Vac; AC-1)
  • Control Voltage (AC)
    110Vac (50Hz/60Hz)
  • Electrical durability (with load)
    150 000 operations
  • Net Height (mm)
    37.2 mm
  • Primary brand
    Finder
  • Connection type
    Solder pin
  • Mounting mode
    Plug-in
  • Mechanical durability (at no load)
    20 000 000 operations
  • Net Depth (mm)
    20.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

55.34.8.110.5040 Related Documents

Finder - 55 Series - Catalogue.pdf
