55.34.8.230.0054 Finder Control Relays

55.34.8.230.0054 on Powermatic Associates
Finder

Part#:55.34.8.230.0054

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

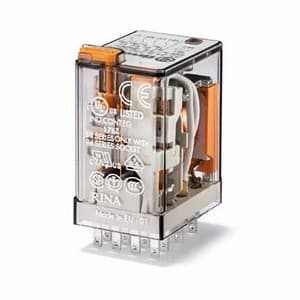

Finder 55.34.8.230.0054 is a relay with a solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1), 7A at 30Vdc, 0.25A at 110Vdc, and 0.12A at 220Vdc under DC-1 conditions. It features normally open (NO) auxiliary contacts and is specified for a supply voltage of 4C/O or 4PDT (4 Pole Double Throw). The ambient air temperature for operation is rated at 350VA for 230Vac (AC-15) and for storage at 1750VA for 250Vac (AC-1). The rated voltage for AC operation is specified with a wide range of -40 to +85 degrees Celsius. It supports a communication protocol of type C and offers protection functions at 250Vac. The net depth of the relay is 37.2 mm, with a control voltage (AC) of 4 kV and a mounting mode width of 27.7 mm. The rated active power is for 4 poles, with a power consumption width of 20.7 mm. The color is specified for 230Vac (50Hz/60Hz) operations, and it has a plug-in residual current sensitivity. The number of Normally Closed (NC) circuits is designed for 150,000 operations, with a length material of AgNi (Silver Nickel) and a diameter designed for 20,000,000 operations.

Product Details

  • Connection type
    Solder pin
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)
  • Primary brand
    Finder
  • Rated current
    7A (250Vac; AC-1) 7A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Height (mm)
    37.2 mm
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Mounting mode
    Plug-in
  • Mechanical durability (at no load)
    20 000 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Net Depth (mm)
    20.7 mm
  • Product series / family name
    55 Series
  • Control Voltage (AC)
    230Vac (50Hz/60Hz)
  • Electrical durability (with load)
    150 000 operations
  • Net Width (mm)
    27.7 mm
  • Rated power
    350VA (230Vac; AC-15) 1750VA (250Vac; AC-1)
  • Poles
    4 Pole(s)
  • Ambient air temperature for operation
    -40...+85 °C
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

55.34.8.230.0054 Related Documents

Finder - 55 Series - Catalogue.pdf
