55.34.9.024.0074 Finder Control Relays

55.34.9.024.0074 on Powermatic Associates
Finder

Part#:55.34.9.024.0074

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

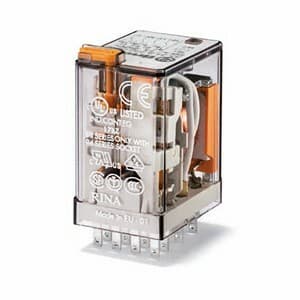

Finder 55.34.9.024.0074 is a relay with a solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1) and 7A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 24Vdc and is capable of handling 350VA at 230Vac for ambient air temperature during operation and 1750VA at 250Vac for ambient air temperature during storage. The relay supports a control voltage of 4 kV and is designed for plug-in mounting, featuring 4 Pole Double Throw (4PDT) with a net depth of 37.2 mm, mounting mode of 27.7 mm, and a power consumption depth of 20.7 mm. It is rated for -40 to +85 degrees Celsius ambient temperatures, has a protection function rated at 250Vac, and is designed for a rated active power with 4 poles. The relay's durability is highlighted by its capability for 150,000 operations for Normally Closed (NC) circuits and a lifespan of 50,000,000 operations, with contact material made of AgNi (Silver Nickel).

Product Details

  • Rated current
    7A (250Vac; AC-1) 7A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Mounting mode
    Plug-in
  • Mechanical durability (at no load)
    50 000 000 operations
  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)
  • Electrical durability (with load)
    150 000 operations
  • Net Width (mm)
    27.7 mm
  • Main function
    Relay
  • Poles
    4 Pole(s)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi (Silver Nickel)
  • Rated power
    350VA (230Vac; AC-15) 1750VA (250Vac; AC-1)
  • Control Voltage (DC)
    24Vdc
  • Net Height (mm)
    37.2 mm
  • Product series / family name
    55 Series
  • Connection type
    Solder pin
  • Ambient air temperature for operation
    -40...+85 °C
  • Rated impulse voltage (Uimp)
    4 kV
  • Net Depth (mm)
    20.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
