56.32.8.120.0050 Finder Control Relays

56.32.8.120.0050 on Powermatic Associates
Finder

Part#:56.32.8.120.0050

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

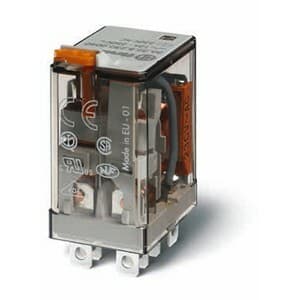

Finder 56.32.8.120.0050 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at both 250Vac (AC-1) and 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), operates within an ambient air temperature range of -40 to +70 degrees Celsius for both operation and storage, and is designed for a control voltage of 120Vac (50Hz/60Hz). The relay features a protection function with a control voltage AC of 4 kV, a rated active power of 2 poles, and is specified for up to 100,000 operations for Normally Closed (NC) circuits and 20,000,000 operations overall. The relay's contacts are made of AgNi (Silver Nickel), indicating its material composition for durability and conductivity.

Product Details

  • Main function
    Relay
  • Poles
    2 Pole(s)
  • Mounting mode
    Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Product series / family name
    56 series
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi (Silver Nickel)
  • Rated voltage (AC)
    250Vac
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Mechanical durability (at no load)
    20 000 000 operations
  • Primary brand
    Finder
  • Connection type
    Fast-on 187
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Control Voltage (AC)
    120Vac (50Hz/60Hz)
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
