56.32.9.012.0080 Finder Control Relays

56.32.9.012.0080 on Powermatic Associates
Finder

Part#:56.32.9.012.0080

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

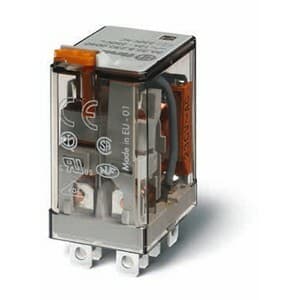

Finder 56.32.9.012.0080 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at both 250Vac (AC-1) and 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc (DC-1) for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures from -40 to +70 degrees Celsius for operation, and has a rated voltage for AC applications. The relay supports a communication protocol of type C, is designed for use with a control voltage (AC) of 4 kV, and has a rated active power of 2 poles. Its design includes protection functions rated at 250Vac, a residual current sensitivity feature with a plug-in connection type, and a diode cross-section. The relay is rated for 100,000 operations for Normally Closed (NC) circuits, with a durability of 50,000,000 operations, indicating its robustness for extensive use.

Product Details

  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Control Voltage (DC)
    12Vdc
  • Electrical durability (with load)
    100 000 operations
  • Product series / family name
    56 series
  • Poles
    2 Pole(s)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi (Silver Nickel)
  • Main function
    Relay
  • Connection type
    Fast-on 187
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Mounting mode
    Plug-in
  • Mechanical durability (at no load)
    50 000 000 operations
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Technology used in component
    Diode

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
