56.32.9.024.0090 Finder Control Relays

56.32.9.024.0090 on Powermatic Associates
Finder

Part#:56.32.9.024.0090

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

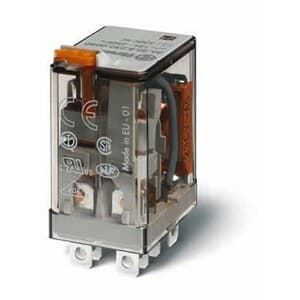

Finder 56.32.9.024.0090 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for operation, and has a rated voltage for AC operations. The relay supports a communication protocol of type C, is designed for use with a 24Vdc control voltage, and offers protection functions at 250Vac with a control voltage AC rating of 4 kV. It is a 2 Pole device with plug-in residual current sensitivity, utilizes a diode cross-section, and is capable of 100,000 operations for Normally Closed (NC) circuits. The relay's contacts are made from AgNi (Silver Nickel), and it is designed for up to 50,000,000 operations, indicating its durability and longevity in applications.

Product Details

  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Mounting mode
    Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Control Voltage (DC)
    24Vdc
  • Mechanical durability (at no load)
    50 000 000 operations
  • Connection type
    Fast-on 187
  • Contacts coating
    AgNi (Silver Nickel)
  • Poles
    2 Pole(s)
  • Technology used in component
    Diode
  • Rated voltage (AC)
    250Vac
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Product series / family name
    56 series
  • Ambient air temperature for operation
    -40...+70 °C
  • Main function
    Relay
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Primary brand
    Finder

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
