56.34.8.120.0040 Finder Control Relays

56.34.8.120.0040 on Powermatic Associates
Finder

Part#:56.34.8.120.0040

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

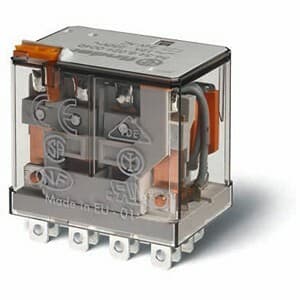

Finder 56.34.8.120.0040 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It features a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), capable of operating within an ambient air temperature range of -40 to +70 degrees Celsius. The relay supports a communication protocol labeled as 'C', offers protection functions at 250Vac, and has a control voltage (AC) of 4 kV. Its rated active power is indicated for 4 poles, with a color specification for 120Vac (50Hz/60Hz). The design includes plug-in residual current sensitivity, and it is rated for 100,000 operations for Normally Closed (NC) circuits, with a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel), ensuring compatibility with a wide range of applications.

Product Details

  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Poles
    4 Pole(s)
  • Rated impulse voltage (Uimp)
    4 kV
  • Product series / family name
    56 series
  • Mounting mode
    Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Control Voltage (AC)
    120Vac (50Hz/60Hz)
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)
  • Contacts coating
    AgNi (Silver Nickel)
  • Primary brand
    Finder
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Rated voltage (AC)
    250Vac
  • Mechanical durability (at no load)
    20 000 000 operations
  • Main function
    Relay
  • Connection type
    Fast-on 187
  • Ambient air temperature for operation
    -40...+70 °C
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
