56.34.9.012.0000 Finder Control Relays

56.34.9.012.0000 on Powermatic Associates
Finder

Part#:56.34.9.012.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

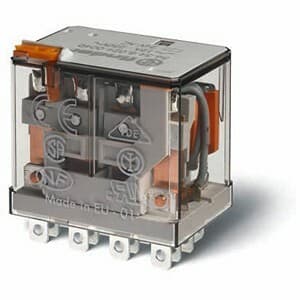

Finder 56.34.9.012.0000 is a relay with a connection type of Fast-on 187, designed to handle rated currents of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower currents of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for operation and is capable of handling 700VA at 230Vac (AC-15) and 3000VA at 250Vac (AC-1) for ambient air temperature storage. The rated voltage for AC operations is specified for 250Vac, with a control voltage (AC) of 4 kV. This relay features a rated active power of 4 Pole(s), utilizes a plug-in design for residual current sensitivity, and supports up to 100,000 operations for Normally Closed (NC) circuits. Its construction material is AgNi (Silver Nickel), with a length of 50,000,000 operations and a diameter of protection functions rated at 250Vac. The poles are designed for 12Vdc, indicating its compatibility and operational specifications.

Product Details

  • Product series / family name
    56 series
  • Connection type
    Fast-on 187
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Primary brand
    Finder
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Mounting mode
    Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Rated voltage (AC)
    250Vac
  • Control Voltage (DC)
    12Vdc
  • Contacts coating
    AgNi (Silver Nickel)
  • Main function
    Relay
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Poles
    4 Pole(s)
  • Ambient air temperature for operation
    -40...+70 °C
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Mechanical durability (at no load)
    50 000 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
