56.34.9.024.4040 Finder Control Relays

56.34.9.024.4040 on Powermatic Associates
Finder

Part#:56.34.9.024.4040

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

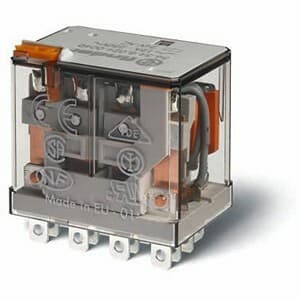

Miniature electromechanical plug-in power relay with mechanical indicator - Finder (56 series) - Control coil voltage 24Vdc - 4 poles (4P) - 4C/O / 4PDT (4 Pole Double Throw) contact - Rated current 12A (250Vac; AC-1) / 12A (30Vdc; DC-1) - Rated switching

Product Details

  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Mounting mode
    Plug-in
  • Poles
    4 Pole(s)
  • Contacts coating
    AgSnO2 (Silver / Tin Oxide)
  • Primary brand
    Finder
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Product series / family name
    56 series
  • Rated voltage (AC)
    250Vac
  • Connection type
    Fast-on 187
  • Electrical durability (with load)
    100 000 operations
  • Main function
    Relay
  • Control Voltage (DC)
    24Vdc
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)
  • Mechanical durability (at no load)
    50 000 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
