60.12.9.110.0040 Finder Control Relays

60.12.9.110.0040 on Powermatic Associates
Finder

Part#:60.12.9.110.0040

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

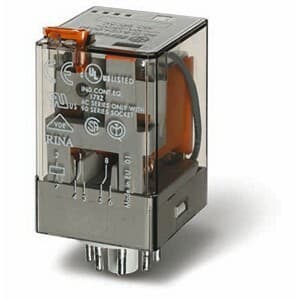

Finder 60.12.9.110.0040 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1), 10A at 30Vdc (DC-1), 0.4A at 110Vdc (DC-1), and 0.15A at 220Vdc (DC-1) with Normally Open (NO) auxiliary contacts. It features a supply voltage of 2C/O / DPDT (Double Pole Double Throw), an ambient air temperature for operation of 500VA at 230Vac, and an ambient air temperature for storage of 2500VA at 250Vac with a speed of AC-1 and a power consumption of 1.3W. The rated voltage for AC operation is specified for -40 to +70 degrees Celsius, with a control voltage (AC) of 4 kV. It has a mounting mode of 32.5 mm, a rated active power of 2 poles, a net depth of 66.7 mm, and dimensions for plug-in (octal, 8-pins) mounting. The relay also includes Normally Closed (NC) auxiliary contacts with a power dissipation/loss of 1.3 W, a rated voltage (AC) - Phase-to-phase of 200,000 operations, a mechanical resistance of AgNi (Silver Nickel), and a power dissipation/losses of 50,000,000 operations.

Product Details

  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Power consumption
    1.3 W
  • Net Width (mm)
    32.5 mm
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1) 1.3W
  • Ambient air temperature for operation
    -40...+70 °C
  • Mechanical durability (at no load)
    50 000 000 operations
  • Net Depth (mm)
    36.4 mm
  • Primary brand
    Finder
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.4A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Mounting mode
    Plug-in (octal; 8-pins)
  • Electrical durability (with load)
    200 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Product series / family name
    60 series
  • Connection type
    Solder pin
  • Control Voltage (DC)
    110Vdc
  • Net Height (mm)
    66.7 mm
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Poles
    2 Pole(s)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 61000-4-5 EN 61810-1
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

60.12.9.110.0040 Related Documents

Finder - 60 Series - Catalogue.pdf
