60.13.9.024.5240 Finder Control Relays

60.13.9.024.5240 on Powermatic Associates
Finder

Part#:60.13.9.024.5240

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

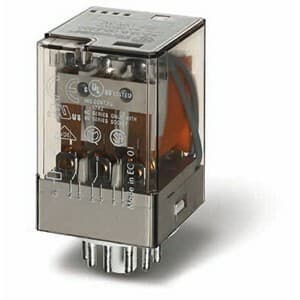

Finder 60.13.9.024.5240 is a relay with solder pin connection type, designed for a rated current of 6A at 250Vac (AC-1) and 6A at 30Vdc (DC-1), with lower currents of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for operation and has a rated voltage for AC operations. The relay features a control voltage of 3.6 kV, a mounting mode width of 32.5 mm, and a rated active power for 3 poles. Its power consumption is noted at 1.3 W, with a plug-in (11-pins) mounting style. The cross-section is described as crossbar bifurcated contacts, with a response time aligned with its power consumption. It is designed for up to 250,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The net depth of the relay is 66.7 mm, with a power consumption width of 36.4 mm, and it utilizes AgNi+Au (Gold plated silver-nickel) contacts.

Product Details

  • Main function
    Relay
  • Poles
    3 Pole(s)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 61000-4-5 EN 61810-1
  • Rated impulse voltage (Uimp)
    3.6 kV
  • Net Height (mm)
    66.7 mm
  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Connection type
    Solder pin
  • Mechanical durability (at no load)
    50 000 000 operations
  • Primary brand
    Finder
  • Rated power
    250VA (230Vac; AC-15) 1500VA (250Vac; AC-1) 1.3W
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Ambient air temperature for operation
    -40...+70 °C
  • Electrical durability (with load)
    250 000 operations
  • Net Depth (mm)
    36.4 mm
  • Rated voltage (AC)
    250Vac
  • Mounting mode
    Plug-in (11-pins)
  • Technology used in component
    Crossbar bifurcated contacts
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Product series / family name
    60 series
  • Control Voltage (DC)
    24Vdc
  • Power consumption
    1.3 W
  • Net Width (mm)
    32.5 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
