62.32.9.024.0300 Finder Control Relays

62.32.9.024.0300 on Powermatic Associates
Finder

Part#:62.32.9.024.0300

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

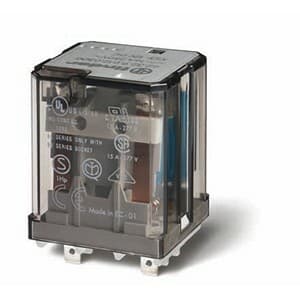

Finder 62.32.9.024.0300 is a relay designed with 2 Normally Open (NO) poles and utilizes a Fast-on 187 connection type. It supports a rated current of 16A for both 250Vac (AC-1) and 30Vdc (DC-1), with auxiliary contacts rated at 1.1A for 110Vdc and 0.7A for 220Vdc under DC-1 design. The supply voltage is specified for 2NO / DPST-NO configurations, with an ambient air temperature for operation at 750VA (230Vac, AC-15) and for storage at 4000VA (250Vac, AC-1). The rated voltage for AC operation is not specified, but the device operates within an ambient temperature range of -40 to +50°C and supports a communication protocol of type C. It is designed for a control voltage (AC) of 4 kV and has a rated active power of 2 poles. The relay features plug-in design for residual current sensitivity, is capable of 100,000 operations for Normally Closed (NC) circuits, and has a mechanical endurance of 30,000,000 operations. The contact material is AgCdO (Silver Cadmium Oxide), with a length specification not provided and a diameter of 30mm.

Product Details

  • Rated power
    750VA (230Vac; AC-15) 4000VA (250Vac; AC-1)
  • Contacts type
    2NO / DPST-NO (Double Pole Single Throw - Normally Open)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 60730-1 EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Product series / family name
    62 series
  • Poles
    2 Pole(s)
  • Mounting mode
    Plug-in
  • Contacts coating
    AgCdO (Silver Cadmium Oxide)
  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Ambient air temperature for operation
    -40...+50 °C
  • Mechanical durability (at no load)
    30 000 000 operations
  • Main function
    Relay
  • Connection type
    Fast-on 187
  • Control Voltage (DC)
    24Vdc
  • Electrical durability (with load)
    100 000 operations
  • Rated current
    16A (250Vac; AC-1) 16A (30Vdc; DC-1) 1.1A (110Vdc; DC-1) 0.7A (220Vdc; DC-1)
  • Number of Normally Open (NO) circuits
    2 NO Pole(s)
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
