62.83.8.024.0000 Finder Control Relays

62.83.8.024.0000 on Powermatic Associates
Finder

Part#:62.83.8.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

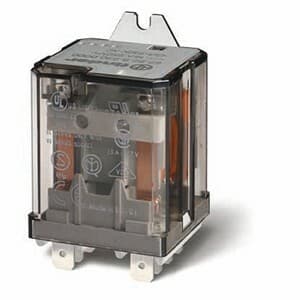

Finder 62.83.8.024.0000 is a relay designed with a Fast-on 250 connection type, supporting a rated current of 16A at both 250Vac (AC-1) and 30Vdc (DC-1), with lower currents of 0.6A at 110Vdc and 0.4A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures for operation and storage from -40 to +70 degrees Celsius. The relay is rated for 750VA at 230Vac (AC-15) and 4000VA at 250Vac (AC-1), with a rated voltage for AC circuits, a control voltage of 24Vac (50Hz/60Hz), and a protection function rated at 250Vac. It features a rear flange design for mounting, AgCdO (Silver Cadmium Oxide) contacts designed for up to 100,000 operations, and is capable of enduring 10,000,000 operations. The relay is equipped with a communication protocol labeled 'C', a control voltage AC of 4 kV, rated active power for 3 poles, and comes in a specific color.

Product Details

  • Main function
    Relay
  • Connection type
    Fast-on 250
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Mounting mode
    Rear flange
  • Contacts coating
    AgCdO (Silver Cadmium Oxide)
  • Primary brand
    Finder
  • Rated current
    16A (250Vac; AC-1) 16A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.4A (220Vdc; DC-1)
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated voltage (AC)
    250Vac
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated power
    750VA (230Vac; AC-15) 4000VA (250Vac; AC-1)
  • Electrical durability (with load)
    100 000 operations
  • Mechanical durability (at no load)
    10 000 000 operations
  • Product series / family name
    62 series
  • Poles
    3 Pole(s)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 61000-4-4 EN 61000-4-5 EN 61810-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

62.83.8.024.0000 Related Documents

Finder - 62 Series - Catalogue.pdf
