62.83.8.024.0300 Finder Control Relays

62.83.8.024.0300 on Powermatic Associates
Finder

Part#:62.83.8.024.0300

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

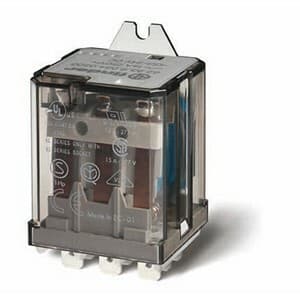

Electromechanical power relay - Finder (62 series) - Control coil voltage 24Vac (50Hz/60Hz) - 3 poles (3P) - 3NO contacts - Rated current 16A (250Vac; AC-1) / 16A (30Vdc; DC-1) - Rated switching power 750VA (230Vac; AC-15) - Contacts coating material AgCd

Product Details

  • Product series / family name
    62 series
  • Rated power
    750VA (230Vac; AC-15) 4000VA (250Vac; AC-1)
  • Primary brand
    Finder
  • Connection type
    Fast-on 250
  • Contacts type
    3NO
  • Rated current
    16A (250Vac; AC-1) 16A (30Vdc; DC-1) 1.1A (110Vdc; DC-1) 0.7A (220Vdc; DC-1)
  • Mounting mode
    Rear flange
  • Electrical durability (with load)
    100 000 operations
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 60730-1 EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Rated voltage (AC)
    250Vac
  • Number of Normally Open (NO) circuits
    3 NO Pole(s)
  • Mechanical durability (at no load)
    10 000 000 operations
  • Contacts coating
    AgCdO (Silver Cadmium Oxide)
  • Main function
    Relay
  • Poles
    3 Pole(s)
  • Ambient air temperature for operation
    -40...+50 °C
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

62.83.8.024.0300 Related Documents

Finder - 62 Series - Catalogue.pdf
