66.22.9.024.0000 Finder Control Relays

66.22.9.024.0000 on Powermatic Associates
Finder

Part#:66.22.9.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

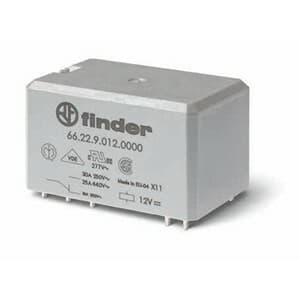

Finder 66.22.9.024.0000 is a relay with solder pin bifurcated connection type, designed for a rated current of 30A at 250Vac for AC-1 and NO contact, and 10A at 250Vac for AC-1 with NC contact. It also supports 25A at 30Vdc for DC-1 with NO contact, and 0.7A at 110Vdc and 0.3A at 220Vdc for DC-1 with NO contact. The relay operates with a supply voltage of 24Vdc and is rated for a voltage of 2C/O / DPDT (Double Pole Double Throw) at AC, with a rated impulse voltage (Uimp) of 4 kV. It features a net height of 31 mm, a net width of 51.5 mm, and a manufacturer product specification length of 33.5 mm. The mounting mode is PCB, suitable for ambient air temperatures ranging from -40 to +70°C. The relay's contacts are made from AgCdO (Silver Cadmium Oxide), ensuring a response time that supports up to 100,000 operations for analog inputs and a climatic resistance of up to 10,000,000 operations. It is designed with 2 poles, rated insulation voltage (Ui) for NC contact, and a rated operating voltage (Ue) of 250Vac, with a residual current sensitivity of 250Vac. The relay's color is specified as 24Vdc.

Product Details

  • Main function
    Relay
  • Connection type
    Solder pin bifurcated
  • Rated power
    1200VA (230Vac; AC-15; NO contact) 7500VA (250Vac; AC-1; NO contact) 2500VA (250Vac; AC-1; NC contact) 1.7W
  • Mounting mode
    PCB
  • Electrical durability (with load)
    100 000 operations
  • Product series / family name
    66 series
  • Poles
    2 Pole(s)
  • Compliant with standard(s)
    cURus RINA IMQ CSA VDE EAC CE EN 60335-1 EN 60664-1 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgCdO (Silver Cadmium Oxide)
  • Rated current
    30A (250Vac; AC-1; NO contact) 10A (250Vac; AC-1; NC contact) 25A (30Vdc; DC-1; NO contact) 0.7A (110Vdc; DC-1; NO contact) 0.3A (220Vdc; DC-1; NO contact)
  • Rated voltage (AC)
    250Vac
  • Power consumption
    1.7 W
  • Primary brand
    Finder
  • Mechanical durability (at no load)
    10 000 000 operations
  • Net Width (mm)
    51.5 mm
  • Control Voltage (DC)
    24Vdc
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Net Height (mm)
    31 mm
  • Net Depth (mm)
    33.5 mm
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
