Q12VP6FF30Q5 Banner Proximity Sensors
Part#:Q12VP6FF30Q5
Alt. Part#:30048
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q12 Series: Fixed-Field; Range: 30 mm Cutoff; Input: 10-30 V dc; Output: LO (Light Operate) ; PNP complementary; 150 mm (6 in) 4-pin M12 Pigtail QD
Product Details
- Weight 18.14368 g
- Country Of Origin MX
- Housing Style Rectangular
- Operation Light Operate
- Number of Pins 4
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Output response time (ms) 0.85 ON/OFF
- Feature: Encapsulated No
- Max Sensing Distance (mm) 30
- Special Feature: Intrinsically Safe No
- Sensing Beam Visible Red LED
- Connection Pigtail QD
- DeviceNet No
- Small Visible Spot LED
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Indicator LEDs
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- Opposed Mode Emitter/Receiver N/A
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Power DC
- Outputs PNP
- Special Feature: Water Detection No
- Input/Output Discrete
- Max Op. Temp. (°C) 55
- Repeatability (µs) 175
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Feature: Chemical Resistant No
- Delay at Power-up (ms) 120
- Lens Material Polycarbonate
- NEMA Rating N/A
- Sensing Beam Wavelength 640
- Feature: Timing (Hold/Delay) No
- Barrel Diameter (mm) N/A
- IO Link No
- Adjustments N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q12VP6FF30Q5 on Powermatic Associates is $129.00. Order now.
About the product

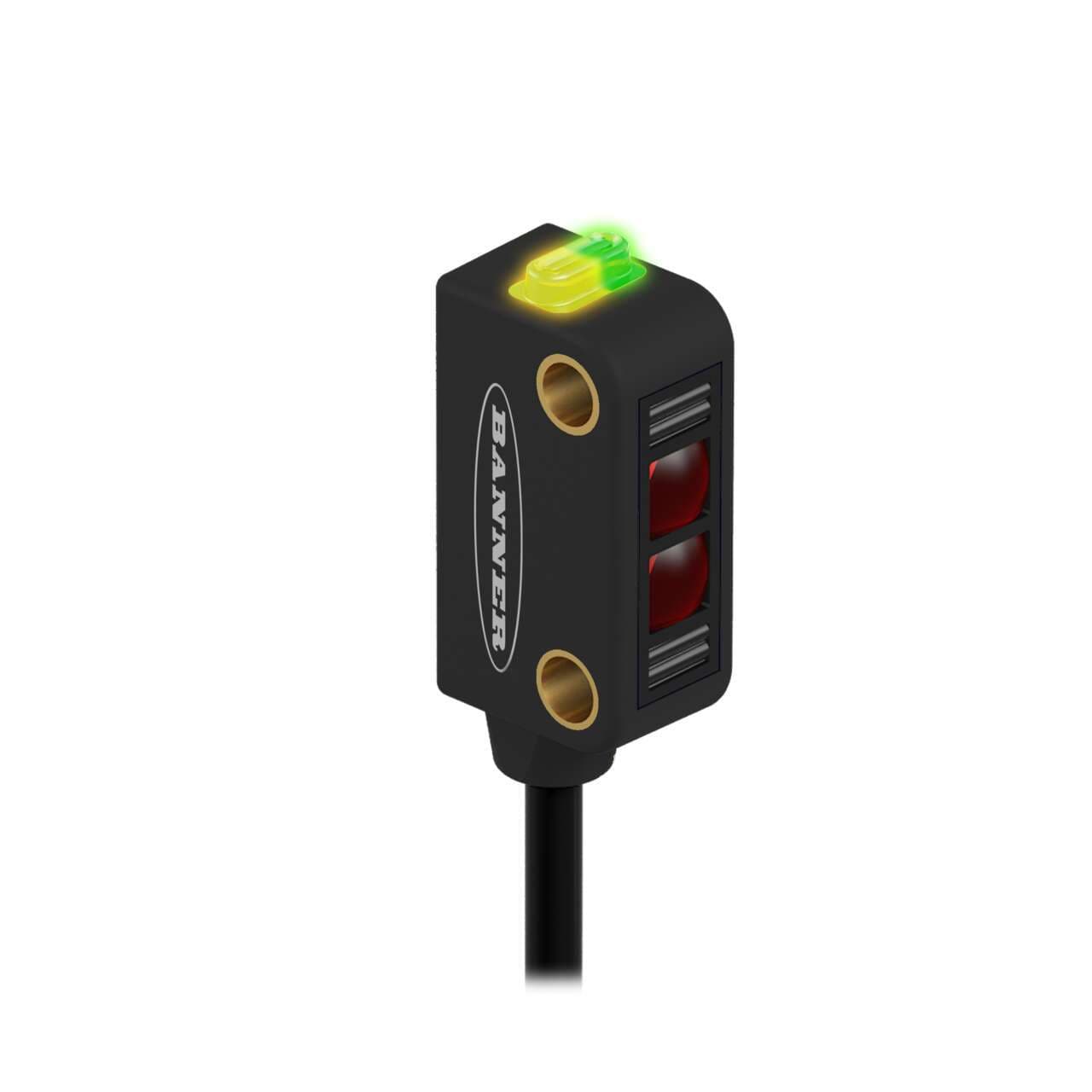

Banner Engineering Q12VP6FF30Q5 is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic casing with a polycarbonate lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector, ensuring compatibility with various installations. Part of the Q12 series, it offers a degree of protection rated at IP67, making it suitable for challenging environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is designed for easy integration into a wide range of applications. The sensing distance is set at 30mm, utilizing visible red light with a wavelength of 640 nm in a Light-ON operating mode. It features a single digital output (PNP transistor) and boasts a rapid response time of 0.7ms / 0.0007 s.
