40.52.8.120.0000 Finder Control Relays

40.52.8.120.0000 on Powermatic Associates
Finder

Part#:40.52.8.120.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

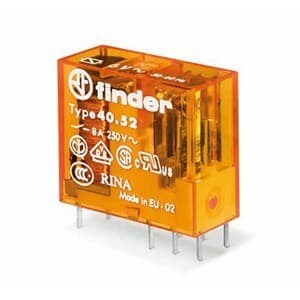

Finder 40.52.8.120.0000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), operates within an ambient air temperature range of -40 to +85 degrees Celsius for both operation and storage, and is rated for 400VA at 230Vac (AC-15) and 2000VA at 250Vac (AC-1) for ambient air temperature operation. The rated voltage for AC operation is specified with protection functions at 250Vac, a control voltage (AC) of 6 kV, and a rated active power of 2 poles. It features a net width of 29 mm, a net depth of 25 mm, and a power consumption of 12.4 mm, with a color code of 120Vac (50Hz/60Hz). The relay is designed for PCB or plug-in mounting with a visual position indicator of 5.3mm pins pitch, capable of 100,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The contact material is AgNi (Silver Nickel), indicating its suitability for a wide range of applications.

Product Details

  • Product series / family name
    40 series
  • Mounting mode
    PCB Plug-in
  • Degree of protection
    RT II
  • Primary brand
    Finder
  • Rated power
    400VA (230Vac; AC-15) 2000VA (250Vac; AC-1)
  • Connection type
    Solder pin
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Poles
    2 Pole(s)
  • Electrical durability (with load)
    100 000 operations
  • Net Height (mm)
    25 mm
  • Distance
    5.3mm pins pitch
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi (Silver Nickel)
  • Net Width (mm)
    29 mm
  • Control Voltage (AC)
    120Vac (50Hz/60Hz)
  • Ambient air temperature for operation
    -40...+85 °C
  • Mechanical durability (at no load)
    10 000 000 operations
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Depth (mm)
    12.4 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
