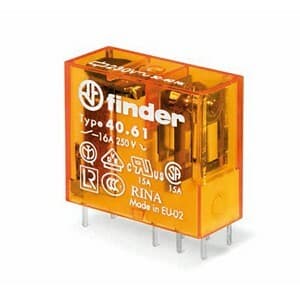

40.61.8.024.0000 Finder Control Relays

40.61.8.024.0000 on Powermatic Associates
Finder

Part#:40.61.8.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 40.61.8.024.0000 is a relay with solder pin connection type, designed for a rated current of 16A at 250Vac (AC-1) and 16A at 30Vdc, with additional ratings of 0.3A at 110Vdc and 0.12A at 220Vdc under DC-1 conditions. It features normally open (NO) auxiliary contacts and is suitable for supply voltages of 1C/O / SPDT (Single Pole Double Throw). The relay operates within an ambient air temperature range of -40 to +85 degrees Celsius and is designed for a control voltage of 6 kV. It has a net width of 29 mm, a net depth of 25 mm, and a power consumption specified for a 24Vac (50Hz/60Hz) supply. The relay is equipped with PCB plug-in mounting mode, visual position indicator with 5.3mm pins pitch, and is capable of 100,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The contact material is AgCdO (Silver Cadmium Oxide), indicating its suitability for various applications requiring reliable contact performance.

Product Details

  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Electrical durability (with load)
    100 000 operations
  • Mechanical durability (at no load)
    10 000 000 operations
  • Primary brand
    Finder
  • Rated power
    750VA (230Vac; AC-15) 4000VA (250Vac; AC-1)
  • Poles
    1 Pole(s)
  • Degree of protection
    RT II
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Depth (mm)
    12.4 mm
  • Product series / family name
    40 series
  • Rated current
    16A (250Vac; AC-1) 16A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Mounting mode
    PCB Plug-in
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Height (mm)
    25 mm
  • Distance
    5.3mm pins pitch
  • Connection type
    Solder pin
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Net Width (mm)
    29 mm
  • Contacts coating
    AgCdO (Silver Cadmium Oxide)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

40.61.8.024.0000 Related Documents

Finder - 40 Series - Catalogue.pdf
