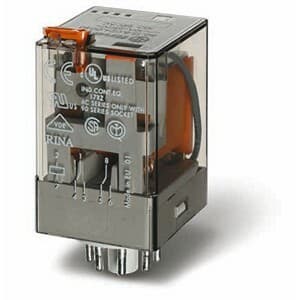

60.12.9.024.0070 Finder Control Relays

60.12.9.024.0070 on Powermatic Associates
Finder

Part#:60.12.9.024.0070

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 60.12.9.024.0070 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.4A at 110Vdc and 0.15A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures from -40 to +70 degrees Celsius for operation and storage. The relay supports a rated voltage of 24Vdc, with a protection function rating of 250Vac. It has a net depth of 66.7 mm, a control voltage of 4 kV, and is designed for plug-in (octal, 8-pins) mounting with dimensions of 32.5 mm by 36.4 mm. The rated active power is for 2 poles, with a power consumption of 1.3 W. The relay is made from AgNi (Silver Nickel) for mechanical resistance, supporting up to 200,000 operations phase-to-phase and has a mechanical endurance of 50,000,000 operations.

Product Details

  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 61000-4-5 EN 61810-1
  • Power consumption
    1.3 W
  • Net Width (mm)
    32.5 mm
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.4A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Technology used in component
    Diode
  • Rated impulse voltage (Uimp)
    4 kV
  • Main function
    Relay
  • Connection type
    Solder pin
  • Ambient air temperature for operation
    -40...+70 °C
  • Electrical durability (with load)
    200 000 operations
  • Net Depth (mm)
    36.4 mm
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1) 1.3W
  • Control Voltage (DC)
    24Vdc
  • Contacts coating
    AgNi (Silver Nickel)
  • Product series / family name
    60 series
  • Poles
    2 Pole(s)
  • Mounting mode
    Plug-in (octal; 8-pins)
  • Mechanical durability (at no load)
    50 000 000 operations
  • Net Height (mm)
    66.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

60.12.9.024.0070 Related Documents

Finder - 60 Series - Catalogue.pdf

Similar products from: Finder Control Relays

40.52.7.024.0000 on Powermatic Associates

40.52.7.024.0000

Finder

Finder 40.52.7.024.0000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +85 degrees Celsius for both operation and storage. This relay has a rated voltage of 250Vac, a control voltage of 6 kV, and is designed for PCB or plug-in mounting. It features a net width of 29 mm, a net depth of 25 mm, and a power consumption of 0.5 W. The visual position indicator has a 5.3mm pins pitch, and the relay is capable of 100,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The relay's poles are rated for 24Vdc, with a protection function of 250Vac, and it has a response time of 0.5 W.

7 in stock
55.32.8.024.0040 on Powermatic Associates

55.32.8.024.0040

Finder

Finder 55.32.8.024.0040 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1), 10A at 30Vdc (DC-1), 0.25A at 110Vdc (DC-1), and 0.12A at 220Vdc (DC-1) with Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures for operation and storage of -40 to +85 degrees Celsius. The relay has a rated voltage for AC operations, a communication protocol of type C, and includes protection functions at 250Vac. Its dimensions are specified with a net depth of 37.2 mm, a mounting mode width of 27.7 mm, and a power consumption length of 20.7 mm. The control voltage (AC) is rated at 4 kV, and it supports a rated active power of 2 poles. The relay is designed for plug-in mounting, has a color code of 24Vac (50Hz/60Hz), and is capable of 200,000 operations for Normally Closed (NC) circuits, with a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

10 in stock
060.48 on Powermatic Associates

060.48

Finder

Sheet of marker tags for thermal transfer prt. - Finder

19 in stock
97.02.0SPA on Powermatic Associates

97.02.0SPA

Finder

Finder 97.02.0SPA is a socket designed for box-clamp connections, featuring a rated current of 8A and an IP20 speed rating. It is suitable for DIN rail mounting, adheres to EN61984 standards for output voltage (DC), and is presented in black.

10 in stock

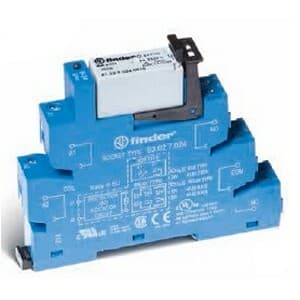

39.31.0.024.0060 on Powermatic Associates
