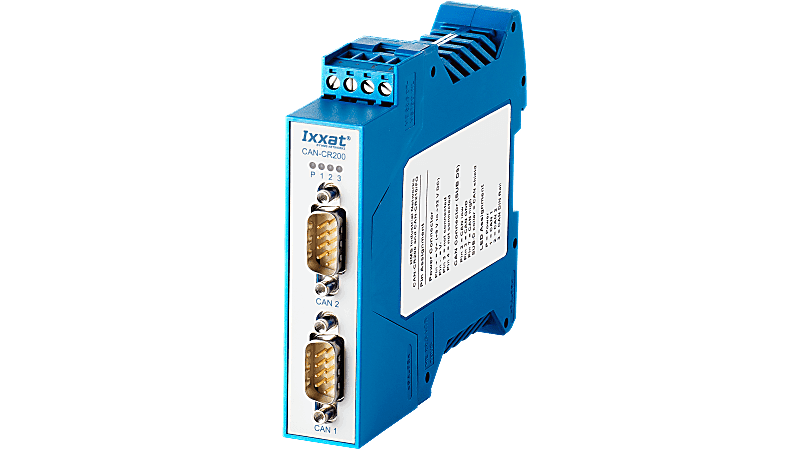

1.01.0067.44010 HMS Networks Industrial Automation Components

Name: 1.01.0067.44010
Brand: HMS Networks

1.01.0067.44010 on Powermatic Associates

Part#:1.01.0067.44010

Manufacturer:HMS Networks

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Ixxat CAN-CR200

Product Details

Manufacturer description
IXXAT CAN Repeaters - CAN-CR200 - IXXAT CAN Repeaters
Customs Tariff Number
8517620090
Primary brand
eWON by HMS Networks
Content of Delivery
CAN repeater, user manual
Storage Temperature °C Min
-40 °C
CE
Yes
Country of Origin
Germany
Current Consumption Type Value at Vcc Nom (mA)
41
Relative Humidity
10 to 95 %, non-condensing
ETIM Classification
EC000698
Mounting
DIN rail mount (bracket included)
Operating Temperature °C Max
70 °C
WEEE Category
IT and telecommunications equipment
Protection Class IP
IP30
HS Code
8517620000
Net Width (ERP) (mm)
100 mm
Packaging Material
Cardboard
FCC
Yes
Net Height (ERP) (mm)
118 mm
Housing Materials
Polyamide housing for top hat rail mounting

Export Control Classification Number (ECCN) (ERP)

EAR99

CAN Transceiver

TI SN65HVD251

Net Weight (ERP) (g)

136 g

Storage Temperature °C Max

85 °C

CAN Mode

CAN high-speed (ISO 11898-2) with CAN choke

Input Voltage (V)

+9 V to +32 V DC

Net Depth (ERP) (mm)

22.5 mm

Isolation

1 kV DC for 1 sec.

CAN Baud Rate

Up to 1 Mbit/s

Operating Temperature °C Min

-20 °C

Connectors / Input / Output

2 x D-Sub 9 connectors, 1 x backbone bus, 1 x power connector

Dual Usage (ERP)

Contains Battery

Current Consumption Max value at Vcc nom (mA)

100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Ixxat by HMS Networks 1.01.0067.44010 is a modular ISO 11898-2 CAN stackable repeater designed for enhancing CAN network signals. It features a Texas Instruments SN65HVD251 CAN transceiver and supports a maximum of 120 bus nodes. The repeater offers switchable 120Ω CAN bus termination resistors and utilizes ISO 11898-2 compliant CAN bus interface with CAN choke, including two Sub-D9 connectors and one backbone bus with integrated, switchable CAN termination resistors. It provides a delay of 200ns, equivalent to a 40m bus length, and ensures galvanic isolation of 1kV between CAN 1 / CAN 2 and the backbone bus. The device operates on a DC supply voltage of 9-32Vdc, with nominal values of 12Vdc / 24Vdc, and features a design that includes 1 x T-bus connector, 2 x 9-pin D-sub male connectors for CAN, and 1 x 4-poles plug-in screw connector for power. It also has four LED indicators for transmit, defective segment, and power status. The repeater is housed in a plastic (ABS) enclosure suitable for DIN rail mounting, measures H100mm x W22.5mm x D115mm, and operates within an ambient air temperature range of -20 to +70°C. It is designed to handle a communication speed of up to 1Mbit/s (CAN) and offers a degree of protection rated at IP30.
