1.13.0142.00002 HMS Networks Industrial Automation Components

Product Details

• Current Consumption Type Value at Vcc Nom (mA)
  320 mA (12 V DC)
• Housing Materials
  Aluminum
• Contains Battery
  No
• Input Voltage (V)
  6 V to 36 V DC
• WEEE Category
  IT and telecommunications equipment
• Connectors / Input / Output
  1 x RJ45 connector (Ethernet), 1 x USB type B port, 1 x USB type A port, 1 x SD card slot, 1 x 7-pin Binder female panel mount connector (remote/debug), 1 x 3-pin Binder male panel mount connector (power), 1 x D-Sub HD15 male connector, 1 x D-Sub HD15 fem
• Net Height (ERP) (mm)
  142 mm
• Storage Temperature °C Min
  -40 °C
• LIN Transceiver
  TJA1020
• Mounting
  Panel mount
• Packaging Material
  Cardboard
• Protection Class IP
  IP42
• CAN Transceiver
  TI SN65HVD251
• Net Width (ERP) (mm)
  113 mm
• Storage Temperature °C Max
  85 °C
• CE
  Yes
• Export Control Classification Number (ECCN) (ERP)
  EAR99
• Power Connector
  3-pole
• Relative Humidity
  10 to 95 %, non-condensing
• ETIM Classification
  EC001604
Net Depth (ERP) (mm)
40 mm
Operating Temperature °C Max
85 °C
Dual Usage (ERP)
No
Net Weight (ERP) (g)
940 g
HS Code
8517620000
CAN Mode
CAN high-speed (ISO 11898-2), CAN low-speed (ISO 11898-3)
Content of Delivery

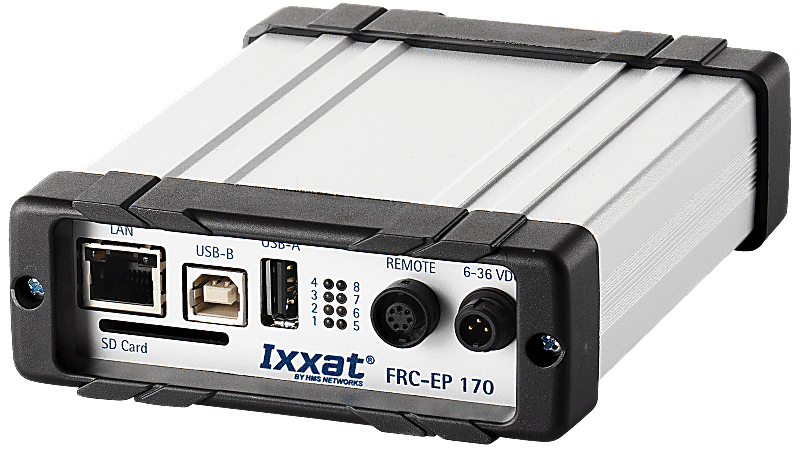

FRC-EP170 device, user manual, power supply cable (2 m, 3-pin Binder socket to 3 x 4 mm banana plugs), USB 2.0 cable (2 m, Type A to Mini Type B), runtime licences for Gateway and RBS, available as download: Advanced Configuration Tool (ACT)
Configuration
The Ixxat FRC-EP170 is a Linux platform that is able to work standalone without any connected PC. For the standalone function a configuration is needed, that can be created and downloaded to the device via the PC based Ixxat Automotive Configuration Tool
Operating Temperature °C Min
-40 °C
Country of Origin
Germany
CAN FD Transceiver
TCAN334GDCN
