AB6321-C HMS Networks Industrial Automation Components

Name: AB6321-C
Brand: HMS Networks

Part#:AB6321-C

Manufacturer:HMS Networks

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Anybus CompactCom 30 Module PROFINET IO - 2 port without housing

Product Details

Input Voltage (V)
3.3 VDC, +/- 0.15 VDC
Protection Class IP
IP20
Net Height (ERP) (mm)
16 mm
Storage Temperature °C Max
85 °C
Successor
AB6705-D
Mounting
PCB mounting via a customized CompactFlash connector
Operating Temperature °C Max
85 °C
Export Control Classification Number (ECCN) (ERP)
3A991.a.2
Content of Delivery
CompactCom M30 module
UL File Number
E214107
Country of Origin
Sweden
Current Consumption Class (CompactCom series)
B
Storage Temperature °C Min
-40 °C
LED Indicators
Indicates Module Status, Network Status and Link/Activity.
Isolation
Galvanic Isolation
Application Interface
8-bit parallel (30 ns access) UART (max 625kbps)
Dual Usage (ERP)
No
Form Factor
Module without Housing
Operating Temperature °C Min
-40 °C
Contains Battery
No

Net Depth (ERP) (mm)

51 mm

Connectors / Input / Output

2x RJ45

Net Width (ERP) (mm)

37 mm

Warranty (years)

HS Code

8517620000

Net Weight (ERP) (g)

18 g

RoHS Compliant

Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Similar products from: HMS Networks Industrial Automation Components

EC6133D

HMS Networks

Industrial Internet Router w/antenna, Ethernet + Cellular

26 in stock

EC51410-00-Q1

HMS Networks

COSY 141 (Per Each)

8 in stock

FAC90501

HMS Networks

Flexy 3G+antenna

6 in stock

FAC90501_01

HMS Networks

Flexy / Cosy 3G+ antenna with 2m cable

12 in stock

FLEXY20100

HMS Networks

Flexy DIN Base

4 in stock

1.01.0282.12001

HMS Networks

Ixxat USB-to-CAN V2 embedded

29 in stock

Manufacturer warranty

AB6321-C HMS Networks

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare AB6321-C with other Industrial Automation Components products

Input Voltage (V)

Protection Class IP

Net Height (ERP) (mm)

Storage Temperature °C Ma...

Successor

Mounting

Operating Temperature °C ...

Export Control Classifica...

Content of Delivery

UL File Number

Selected product

Backordered

HMS Networks

Anybus CompactCom 30 Module PROFINET IO - 2 port without housing

Input Voltage (V)3.3 VDC, +/- 0.15 VDC

Protection Class IPIP20

Net Height (ERP) (mm)16 mm

Storage Temperature °C Max85 °C

SuccessorAB6705-D

MountingPCB mounting via a customize...

Operating Temperature °C Max85 °C

Export Control Classification Number (ECCN) (ERP)3A991.a.2

Content of DeliveryCompactCom M30 module

UL File NumberE214107

29 in stock

HMS Networks

Ixxat USB-to-CAN V2 embedded

Input Voltage (V)5 V DC via USB port

Protection Class IP-

Net Height (ERP) (mm)67 mm

Storage Temperature °C Max-

Successor-

MountingSlot bracket

Operating Temperature °C Max70 °C

Export Control Classification Number (ECCN) (ERP)-

Content of DeliveryUSB-to-CAN V2 interface, use...

UL File Number-

Backordered

Schneider Electric

Schneider Electric M9F21116 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designe...

Input Voltage (V)-

Protection Class IP-

Net Height (ERP) (mm)-

Storage Temperature °C Max-

Successor-

Mounting-

Operating Temperature °C Max-

Export Control Classification Number (ECCN) (ERP)-

Content of Delivery-

UL File Number-

About the manufacturer

Powermatic Associates is an authorized HMS Networks distributor, committed to bringing advanced industrial connectivity solutions to our clientele. HMS Networks stands as a global leader in industrial communication and the Industrial Internet of Things (IIoT). With a focus on bridging communication gaps in automation, HMS Networks develops cutting-edge products that facilitate seamless data and in...

Recently viewed products

M-1719-1.5S

Novanta IMS

Novanta IMS M-1719-1.5S is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a smooth-shaft design with a single flat and triple (3) motor stack. It is equipped with bare end flying leads for connection, and operates at a rated current of 1.5A with a supply voltage range of 24Vdc to 48Vdc, specifically 24Vdc. This stepper motor is designed for mounting with a 42x42mm flange and can operate within an ambient air temperature range of -25 to +40°C. It has a moment of inertia of 0.082kg.cm^2 and provides a stall torque of 53N.cm (75oz-in). The motor is designed for storage in temperatures ranging from -25 to +70°C and offers a resolution of 1.8° step angle.

0 in stock

LMHOE571

Novanta IMS

Novanta IMS LMHOE571 is a stepper motor designed for applications requiring integrated drive and high-torque capabilities. This model falls within the high-torque stepper motors sub-range and features a single motor stack in an open-loop system. It offers a variety of connection types, including a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector, ensuring versatile integration options. The LMHOE571 supports Ethernet/IP and Modbus TCP communication protocols for efficient network integration. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The motor is designed for mounting via a 57x57mm flange, providing a secure installation. With a degree of protection rated at IP20, it is suited for use in environments where protection against solid objects is necessary. The motor's moment of inertia is 0.14kg.cm^2, and it delivers a stall torque of 107N.cm. It achieves precise motion control with a resolution of 1.8° step angle.

0 in stock

PSWS 3M-10/S90

Turck

PSWS 3M-10/S90 Turck - PSWS 3M-10/S90 Actuator and Sensor Cordset, Connection Cable

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

Turck

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611 Turck - BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

Novanta IMS MDI3CRL34A7-EQ is a stepper motor characterized by its integrated driver and 2-phase DC stepper motor functionality. It features an external single-end 512-line optical encoder and a single motor stack, enhanced by the Plus 2 version for expanded features. This part offers a 14-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage ranges from 12Vdc to 75Vdc, with specific ratings at 24Vdc, 48Vdc, and 72Vdc. It is designed for mounting with an 85x85mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI3CRL34A7-EQ has an IP20 degree of protection, a moment of inertia of 1kg.cm^2, a stall torque of 233N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

Relevant products

AB6301-B

Verified stock: 0

Anybus CompactCom 30 Module DeviceNet without housing

HMS Networks

AB6325-B

Verified stock: 0

Anybus CompactCom 30 Module PROFIBUS DP-V0 without housing

HMS Networks

AB6383-B

Verified stock: 0

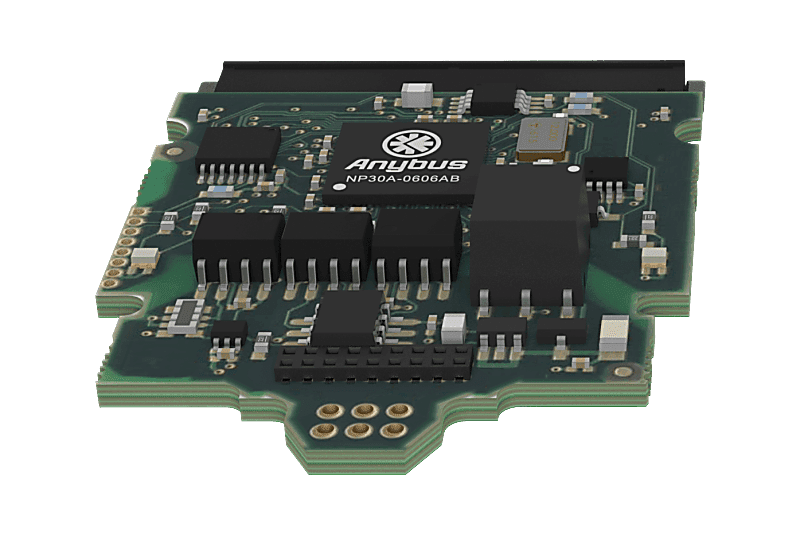

Anybus CompactCom 30 Brick Modbus-TCP 2 port

HMS Networks

AB6311-B

Verified stock: 0

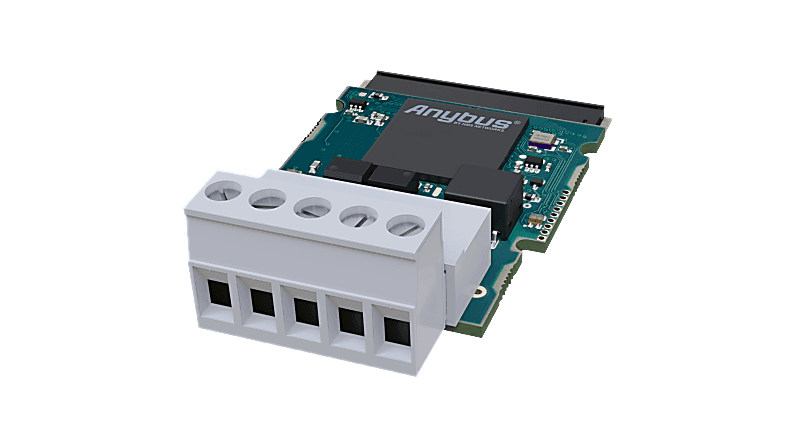

Anybus CompactCom 30 Module CC-Link without housing

HMS Networks

AB6303-B

Verified stock: 0

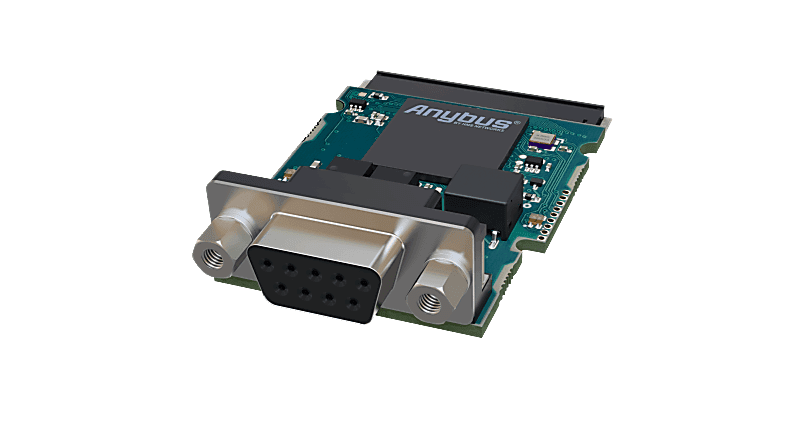

Anybus CompactCom 30 Module Modbus-RTU without housing
