AB6703-D HMS Networks Industrial Automation Components

Product Details

• Net Height (ERP) (mm)
  16 mm
• Application Interface
  8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps)
• Connectors / Input / Output
  2x RJ45
• LED Indicators
  Semi-Integrated. Link/Activity are availbe on RJ45 connectors. Module Status and Network Status via application interface or external light pipes
• Input Voltage (V)
  3.3 VDC, +/- 0.15 VDC
• Country of Origin
  Sweden
• Net Weight (ERP) (g)
  15 g
• UL File Number
  E214107
• Mounting
  PCB mounting via a customized CompactFlash connector
• Storage Temperature °C Min
  -40 °C
• Warranty (years)
  1 year
• Export Control Classification Number (ECCN) (ERP)
  3A991.a.2
• Net Width (ERP) (mm)
  37 mm
• Form Factor
  Module without Housing
• Current Consumption Class (CompactCom series)
  B
• Operating Temperature °C Max
  85 °C
• Contains Battery
  No
• Isolation
  Galvanic Isolation
• Operating Temperature °C Min
  -40 °C
• Storage Temperature °C Max
  85 °C
Net Depth (ERP) (mm)
51 mm
HS Code
8517620000
Content of Delivery

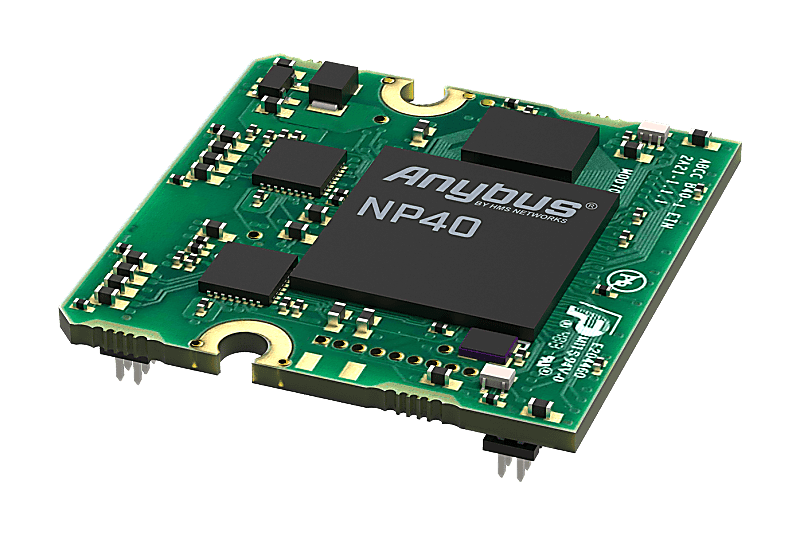

CompactCom M40 module (without housing)
Dual Usage (ERP)
No
