AB7010-B HMS Networks Industrial Automation Components

Name: AB7010-B
Brand: HMS Networks

Part#:AB7010-B

Manufacturer:HMS Networks

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Anybus Communicator – Serial Master to Modbus-RTU

Product Details

Manufacturer description
Anybus Communicator Serial Gateways - Modbus RTU Slave
Primary brand
eWON by HMS Networks
Customs Tariff Number
8517620090
Power Connector
2-pin, 5.08 Phoenix plug connector
Short Circuit Protection
Yes
Maximum Installation Altitude (m)
up to 2 000 m
Protection Class IP
IP20
Modbus-RTU Mode
Client / Master, Slave mode
Current Consumption Max value at Vcc nom (mA)
300mA @ 24V DC
Net Width (ERP) (mm)
27 mm
Operating Temperature °C Min
0 °C
Isolation
TRUE
Packaging Material
Cardboard
UL File Number
E214107: Ord.Loc UL508, CSA C22.2 No. 14-10; E203225: Haz.Loc CL I DIV2 GP A,B,C,D, ANSI/ISA 12.12.01, CSA C22.2 No. 213
Connectors / Input / Output
1x D-sub 9-pin female, 1x D-sub 9-pin female
Contains Battery
No
Modbus-RTU Baud Rate
1200,1800,2400,4800,7200,9600,14400,19200,35700,38400,57600 bit/s, 1200bps - 57600bps
Modbus-RTU Output Data Size
512 bytes, 512 bytes
Input Voltage (V)
24V DC (-10% to +10%)
Storage Temperature °C Min
-40 °C

Waste Certification (WEEE)

Yes

Export Control Classification Number (ECCN) (ERP)

5A991.b.4b

Mounting

DIN-rail (EN 50022 standard)

Operating Temperature °C Max

55 °C

FCC

Country of Origin

Sweden

Modbus-RTU Functions Supported

1, 2, 3, 4, 5, 6, 7, 8, 11, 12, 15, 16, 17, 20, 21, 22, 23, 24

Net Depth (ERP) (mm)

75 mm

Storage Temperature °C Max

85 °C

Environment

EN 50082-2, EN 55011, EN 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6

DIP & Rotary Switches

dip switch Termination and configuraiton

Baud Rate

1200,1800,2400,4800,7200,9600,14400,19200,35700,38400,57600 bit/s

Net Weight (ERP) (g)

300 g

Housing Materials

PC ABS, UL 94

RoHS Compliant

Yes

Modbus-RTU Supported Functionality

RS-232; RS-422; RS485; DF1; Standard Modbus RTU Master; Custom Request / Responce commands; Custom Produce / Consume transactions; Trigger initated transactions 7 or 8 data bit; None, Odd, Even Parity; 1 or 2 stop bit; Clear/Freeze, Modbus-RTU compliant p

Reverse Polarity Protection

Yes

Relative Humidity

0-95% non condensing

EMC

Yes

Dual Usage (ERP)

Max Nodes

Net Height (ERP) (mm)

120 mm

Yes

WEEE Category

IT and telecommunications equipment

HS Code

8517620000

Connector

1x D-sub 9-pin female

Current Consumption Type Value at Vcc Nom (mA)

100mA @ 24V DC

Yes

Recycle / Disposal

TRUE

Modbus-RTU Input Data Size

512 bytes, 512 bytes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Anybus by HMS Networks AB7010-B is a gateway designed for serial communication, belonging to the Serial Communicators sub-range. It functions as a serial communicator/gateway with a configurable RS-232/422/485 interface, supporting produce/consume and query/response ASCII protocols. Capable of handling up to 31 stations with RS485/422, it offers a baud rate range of 1.2-57.6kbit/s. The device supports various Modbus commands, including reading and writing coils, registers, and more, alongside DF1 services such as integrity checks and diagnostics. It features reverse voltage protection, short circuit protection, and galvanic isolation on the sub-network, with an MTTF of over 550,000 hours. Designed for industrial environments, it has immunity to electrostatic discharge, electromagnetic RF fields, fast transients, surge protection, and RF conducted interference, with specific emission levels. The AB7010-B includes 13 configuration switches, 6 LED indicators, and operates on a supply voltage of 21.6-26.4Vdc. It has a plastic housing made of ABS/PC, measures H120mm x W27mm x D75mm, and offers various connection types including 9-pin D-sub and RJ11 connectors. With an IP20 and NEMA 1 degree of protection, it is suitable for DIN rail mounting and operates within an ambient air temperature range of 0 to +55 °C. The device consumes a maximum of 300mA at 24Vdc and is designed for operation in environments with up to 95% relative humidity, non-condensing.

AB7010-B Related Documents

anybus-gateways-wireless-concept.pdf

Similar products from: HMS Networks Industrial Automation Components

EC6133D

HMS Networks

Industrial Internet Router w/antenna, Ethernet + Cellular

26 in stock

EC51410-00-Q1

HMS Networks

COSY 141 (Per Each)

8 in stock

FAC90501

HMS Networks

Flexy 3G+antenna

6 in stock

FAC90501_01

HMS Networks

Flexy / Cosy 3G+ antenna with 2m cable

12 in stock

FLEXY20100

HMS Networks

Flexy DIN Base

4 in stock

1.01.0282.12001

HMS Networks

Ixxat USB-to-CAN V2 embedded

29 in stock

Manufacturer warranty

AB7010-B HMS Networks

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare AB7010-B with other Industrial Automation Components products

Manufacturer description

Primary brand

Customs Tariff Number

Power Connector

Short Circuit Protection

Maximum Installation Alti...

Protection Class IP

Modbus-RTU Mode

Current Consumption Max v...

Net Width (ERP) (mm)

Selected product

Backordered

AB7010-B

HMS Networks

Anybus Communicator – Serial Master to Modbus-RTU

Manufacturer descriptionAnybus Communicator Serial G...

Primary brandeWON by HMS Networks

Customs Tariff Number8517620090

Power Connector2-pin, 5.08 Phoenix plug con...

Short Circuit ProtectionYes

Maximum Installation Altitude (m)up to 2 000 m

Protection Class IPIP20

Modbus-RTU ModeClient / Master, Slave mode

Current Consumption Max value at Vcc nom (mA)300mA @ 24V DC

Net Width (ERP) (mm)27 mm

29 in stock

1.01.0282.12001

HMS Networks

Ixxat USB-to-CAN V2 embedded

Manufacturer descriptionIXXAT PC Interfaces - USB-to...

Primary brandeWON by HMS Networks

Customs Tariff Number8517620090

Power ConnectorUSB

Short Circuit Protection-

Maximum Installation Altitude (m)-

Protection Class IP-

Modbus-RTU Mode-

Current Consumption Max value at Vcc nom (mA)300 mA (5 V DC)

Net Width (ERP) (mm)18 mm

2 in stock

EW40922

HMS Networks

Manufacturer descriptionEWON Flexy - 2G/3G GSM anten...

Primary brandeWON by HMS Networks

Customs Tariff Number8517701190

Power Connector-

Short Circuit Protection-

Maximum Installation Altitude (m)-

Protection Class IP-

Modbus-RTU Mode-

Current Consumption Max value at Vcc nom (mA)-

Net Width (ERP) (mm)-

About the manufacturer

Powermatic Associates is an authorized HMS Networks distributor, committed to bringing advanced industrial connectivity solutions to our clientele. HMS Networks stands as a global leader in industrial communication and the Industrial Internet of Things (IIoT). With a focus on bridging communication gaps in automation, HMS Networks develops cutting-edge products that facilitate seamless data and in...

Recently viewed products

M-1719-1.5S

Novanta IMS

Novanta IMS M-1719-1.5S is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a smooth-shaft design with a single flat and triple (3) motor stack. It is equipped with bare end flying leads for connection, and operates at a rated current of 1.5A with a supply voltage range of 24Vdc to 48Vdc, specifically 24Vdc. This stepper motor is designed for mounting with a 42x42mm flange and can operate within an ambient air temperature range of -25 to +40°C. It has a moment of inertia of 0.082kg.cm^2 and provides a stall torque of 53N.cm (75oz-in). The motor is designed for storage in temperatures ranging from -25 to +70°C and offers a resolution of 1.8° step angle.

0 in stock

LMHOE571

Novanta IMS

Novanta IMS LMHOE571 is a stepper motor designed for applications requiring integrated drive and high-torque capabilities. This model falls within the high-torque stepper motors sub-range and features a single motor stack in an open-loop system. It offers a variety of connection types, including a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector, ensuring versatile integration options. The LMHOE571 supports Ethernet/IP and Modbus TCP communication protocols for efficient network integration. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The motor is designed for mounting via a 57x57mm flange, providing a secure installation. With a degree of protection rated at IP20, it is suited for use in environments where protection against solid objects is necessary. The motor's moment of inertia is 0.14kg.cm^2, and it delivers a stall torque of 107N.cm. It achieves precise motion control with a resolution of 1.8° step angle.

0 in stock

PSWS 3M-10/S90

Turck

PSWS 3M-10/S90 Turck - PSWS 3M-10/S90 Actuator and Sensor Cordset, Connection Cable

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

Turck

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611 Turck - BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

Novanta IMS MDI3CRL34A7-EQ is a stepper motor characterized by its integrated driver and 2-phase DC stepper motor functionality. It features an external single-end 512-line optical encoder and a single motor stack, enhanced by the Plus 2 version for expanded features. This part offers a 14-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage ranges from 12Vdc to 75Vdc, with specific ratings at 24Vdc, 48Vdc, and 72Vdc. It is designed for mounting with an 85x85mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI3CRL34A7-EQ has an IP20 degree of protection, a moment of inertia of 1kg.cm^2, a stall torque of 233N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

Relevant products

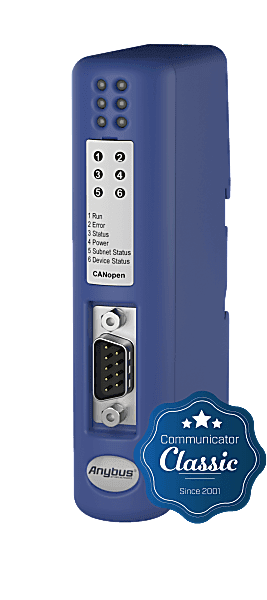

AB7003-B

Verified stock: 0

Anybus Communicator – Serial Master to CANopen

HMS Networks

AB7063-C

Verified stock: 0

HMS eWon component

HMS Networks

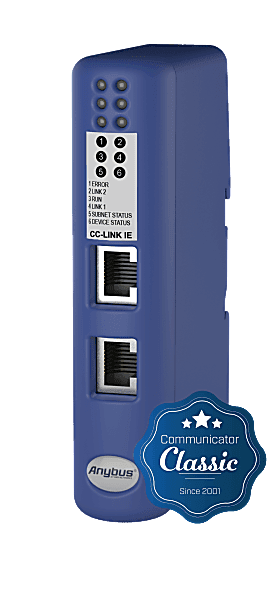

AB7077-B
