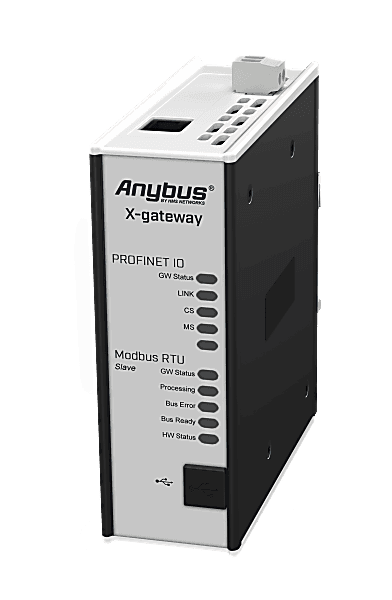

AB7659-F HMS Networks Industrial Automation Components

Product Details

• Primary brand
  eWON by HMS Networks
• Customs Tariff Number
  8517620090
• Manufacturer description
  Anybus X-Gateways - Network 1 PROFINET I/O Slave / Network 2 Modbus RTU Slave
• Reverse Polarity Protection
  Yes
• CE
  Yes
• Recycle / Disposal
  TRUE
• DIP & Rotary Switches
  dip switch Termination and configuraiton
• PROFINET Configuration File
  GSDML available
• Input Voltage (V)
  24V DC (-20% to +20%)
• Operating Temperature °C Min
  -25 °C
• FCC
  No
• RoHS Compliant
  Yes
• Modbus-RTU Functions Supported
  1, 2, 3, 4, 5, 6, 15, 16, 22, 23
• Mounting
  DIN-rail (EN 50022 standard)
• Housing Materials
  Aluminum, Plastic
• EMC
  Yes
• Dual Usage (ERP)
  No
• PROFINET Supported Functionality
  Soft Real-Time (RT); Max 64 slots / 1 sub-slot; DCP support; Acyclic Data exchange
• Net Height (ERP) (mm)
  127 mm
• Storage Temperature °C Max
  85 °C
Waste Certification (WEEE)
Yes
Modbus-RTU Baud Rate
1200bps - 57600bps
PROFINET Output Data Size
512 bytes
Net Weight (ERP) (g)
400 g
Short Circuit Protection
Yes
UL File Number
E214107: Ord.Loc UL508, CSA C22.2 NO. 142
Country of Origin
Sweden
Modbus-RTU Input Data Size
512 bytes
Current Consumption Max value at Vcc nom (mA)
400mA @ 24V DC
Operating Temperature °C Max
65 °C
Connectors / Input / Output
2x RJ45, 1x D-sub 9-pin female, USB-B Config port
Modbus-RTU Output Data Size
512 bytes
Net Depth (ERP) (mm)
114 mm
UL
Yes
Protection Class IP
IP20
Modbus-RTU Supported Functionality
Modbus-RTU compliant passive slave node operation; 256 Modbus registers in each direction; Modbus diagnostics
PROFINET Input Data Size
512 bytes
Power Connector
2-pin, 5.08 Phoenix plug connector
Storage Temperature °C Min
-40 °C
Environment
EN 61000-6-4, EN 55016-2-3 Class A, EN 55022 Class A, EN 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
HS Code
8517620000
PROFINET Mode
Slave
Net Width (ERP) (mm)
44 mm
Isolation
TRUE
WEEE Category
IT and telecommunications equipment
Export Control Classification Number (ECCN) (ERP)
5A991.b.1
Current Consumption Type Value at Vcc Nom (mA)
200mA @ 24V DC
Packaging Material
Cardboard
Contains Battery
No
Modbus-RTU Mode
Slave mode
PROFINET Bandwidth
10/100Mbit full/half duplex down to 1ms
