AB7669-F HMS Networks Industrial Automation Components

Name: AB7669-F
Brand: HMS Networks

Part#:AB7669-F

Manufacturer:HMS Networks

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Anybus X-gateway – EtherNet/IP Scanner - Modbus TCP Server

Product Details

Primary brand
eWON by HMS Networks
Manufacturer description
Anybus X-Gateways - Network 1 EtherNet/IP Scanner/Master / Network 2 Modbus TCP/IP Slave
Customs Tariff Number
8517620090
Net Depth (ERP) (mm)
114 mm
Housing Materials
Aluminum, Plastic
Waste Certification (WEEE)
Yes
Country of Origin
Sweden
Modbus-TCP Bandwidth
10/100 Mbit/s
Mounting
DIN-rail (EN 50022 standard)
Storage Temperature °C Max
85 °C
Environment
EN 61000-6-4, EN 55016-2-3 Class A, EN 55022 Class A, EN 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
DIP & Rotary Switches
8 Dip switches for IP settings
Modbus-TCP Supported Functionality
Modbus specification V1.0; Daisy chaining; QoS; Modbus TCP class 0, class 1 and partially class 2 slave functionality
Current Consumption Max value at Vcc nom (mA)
400mA @ 24V DC
Operating Temperature °C Max
65 °C
EMC
Yes
Contains Battery
No
EtherNet/IP No. Of Adapters
64
Reverse Polarity Protection
Yes
FCC
No

HS Code

8517620000

EtherNet/IP Bandwidth

10/100MBit

Net Height (ERP) (mm)

127 mm

Operating Temperature °C Min

-25 °C

UL File Number

E214107: Ord.Loc UL508, CSA C22.2 NO. 142

Connectors / Input / Output

2xRJ45;USB-B Config port

EtherNet/IP Input Data Size

509 bytes

Input Voltage (V)

24V DC (-20% to +20%)

Storage Temperature °C Min

-40 °C

Yes

Export Control Classification Number (ECCN) (ERP)

5A991.b.1

Modbus-TCP Input Data Size

512 bytes

Power Connector

2-pin, 5.08 Phoenix plug connector

Short Circuit Protection

Yes

WEEE Category

IT and telecommunications equipment

EtherNet/IP Mode

Scanner / Master

Modbus-TCP Mode

Slave / Server

Current Consumption Type Value at Vcc Nom (mA)

200mA @ 24V DC

Yes

Protection Class IP

IP20

Successor

ABC3361-A, ABC3390-A

Modbus-TCP Output Data Size

512 bytes

Net Width (ERP) (mm)

44 mm

Isolation

Yes

Recycle / Disposal

Yes

Dual Usage (ERP)

Net Weight (ERP) (g)

400 g

Packaging Material

Cardboard

RoHS Compliant

Yes

EtherNet/IP Output Data Size

505 bytes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Anybus by HMS Networks AB7669-F is a gateway belonging to the X-gateway series designed to function as a protocol translator gateway. It supports installation in both vertical and flat positions and features galvanic isolation on both the BUS and Ethernet sides. The I/O configuration is manageable via a USB port using the Anybus Configuration Manager software. This model combines an EtherNet/IP scanner and a Modbus TCP server, equipped with 16 IP configuration switches and 10 LED indicators for fieldbus, sub-network, and device status monitoring. It requires a supply voltage of 19.2-28.8Vdc, with a nominal 24Vdc, and has dimensions of H127mm x W44mm x D114mm. The housing is made from aluminium and plastic, ensuring durability and resilience. For connectivity, it includes 1 RJ45 LAN connector for 10/100Mbit/s Ethernet/IP (supporting both full and half duplex), 2 RJ45 connectors for 10/100Mbit/s Modbus TCP (also supporting full and half duplex), 1 2-poles 5.08mm plug-in screw connector for power, and 1 USB connector for configuration. It offers a degree of protection of IP20 NEMA 1 and is designed for DIN rail mounting. The communication protocols supported are Ethernet/IP and Modbus TCP. It operates within an ambient air temperature range of -25 to +65 °C, with a current consumption of 400mA (max) and 200mA (typical) at 24Vdc. The device is designed to withstand an ambient air temperature range for storage of -40 to +85 °C and operates at speeds of 10/100Mbit/s for both Ethernet and Modbus. Humidity tolerance is specified at 5-95% relative humidity (RH; non-condensing).

AB7669-F Related Documents

anybus-gateways-wireless-concept.pdf

Similar products from: HMS Networks Industrial Automation Components

EC6133D

HMS Networks

Industrial Internet Router w/antenna, Ethernet + Cellular

26 in stock

EC51410-00-Q1

HMS Networks

COSY 141 (Per Each)

8 in stock

FAC90501

HMS Networks

Flexy 3G+antenna

6 in stock

FAC90501_01

HMS Networks

Flexy / Cosy 3G+ antenna with 2m cable

12 in stock

FLEXY20100

HMS Networks

Flexy DIN Base

4 in stock

1.01.0282.12001

HMS Networks

Ixxat USB-to-CAN V2 embedded

29 in stock

Manufacturer warranty

AB7669-F HMS Networks

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare AB7669-F with other Industrial Automation Components products

Primary brand

Manufacturer description

Customs Tariff Number

Net Depth (ERP) (mm)

Housing Materials

Waste Certification (WEEE...

Country of Origin

Modbus-TCP Bandwidth

Mounting

Storage Temperature °C Ma...

Selected product

Backordered

AB7669-F

HMS Networks

Anybus X-gateway – EtherNet/IP Scanner - Modbus TCP Server

Primary brandeWON by HMS Networks

Manufacturer descriptionAnybus X-Gateways - Network ...

Customs Tariff Number8517620090

Net Depth (ERP) (mm)114 mm

Housing MaterialsAluminum, Plastic

Waste Certification (WEEE)Yes

Country of OriginSweden

Modbus-TCP Bandwidth10/100 Mbit/s

MountingDIN-rail (EN 50022 standard)

Storage Temperature °C Max85 °C

29 in stock

1.01.0282.12001

HMS Networks

Ixxat USB-to-CAN V2 embedded

Primary brandeWON by HMS Networks

Manufacturer descriptionIXXAT PC Interfaces - USB-to...

Customs Tariff Number8517620090

Net Depth (ERP) (mm)40 mm

Housing Materials-

Waste Certification (WEEE)-

Country of Origin-

Modbus-TCP Bandwidth-

MountingSlot bracket

Storage Temperature °C Max-

2 in stock

EW40922

HMS Networks

Primary brandeWON by HMS Networks

Manufacturer descriptionEWON Flexy - 2G/3G GSM anten...

Customs Tariff Number8517701190

Net Depth (ERP) (mm)-

Housing Materials-

Waste Certification (WEEE)-

Country of Origin-

Modbus-TCP Bandwidth-

Mounting-

Storage Temperature °C Max-

About the manufacturer

Powermatic Associates is an authorized HMS Networks distributor, committed to bringing advanced industrial connectivity solutions to our clientele. HMS Networks stands as a global leader in industrial communication and the Industrial Internet of Things (IIoT). With a focus on bridging communication gaps in automation, HMS Networks develops cutting-edge products that facilitate seamless data and in...

Recently viewed products

M-1719-1.5S

Novanta IMS

Novanta IMS M-1719-1.5S is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a smooth-shaft design with a single flat and triple (3) motor stack. It is equipped with bare end flying leads for connection, and operates at a rated current of 1.5A with a supply voltage range of 24Vdc to 48Vdc, specifically 24Vdc. This stepper motor is designed for mounting with a 42x42mm flange and can operate within an ambient air temperature range of -25 to +40°C. It has a moment of inertia of 0.082kg.cm^2 and provides a stall torque of 53N.cm (75oz-in). The motor is designed for storage in temperatures ranging from -25 to +70°C and offers a resolution of 1.8° step angle.

0 in stock

LMHOE571

Novanta IMS

Novanta IMS LMHOE571 is a stepper motor designed for applications requiring integrated drive and high-torque capabilities. This model falls within the high-torque stepper motors sub-range and features a single motor stack in an open-loop system. It offers a variety of connection types, including a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector, ensuring versatile integration options. The LMHOE571 supports Ethernet/IP and Modbus TCP communication protocols for efficient network integration. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The motor is designed for mounting via a 57x57mm flange, providing a secure installation. With a degree of protection rated at IP20, it is suited for use in environments where protection against solid objects is necessary. The motor's moment of inertia is 0.14kg.cm^2, and it delivers a stall torque of 107N.cm. It achieves precise motion control with a resolution of 1.8° step angle.

0 in stock

PSWS 3M-10/S90

Turck

PSWS 3M-10/S90 Turck - PSWS 3M-10/S90 Actuator and Sensor Cordset, Connection Cable

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

Turck

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611 Turck - BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

Novanta IMS MDI3CRL34A7-EQ is a stepper motor characterized by its integrated driver and 2-phase DC stepper motor functionality. It features an external single-end 512-line optical encoder and a single motor stack, enhanced by the Plus 2 version for expanded features. This part offers a 14-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage ranges from 12Vdc to 75Vdc, with specific ratings at 24Vdc, 48Vdc, and 72Vdc. It is designed for mounting with an 85x85mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI3CRL34A7-EQ has an IP20 degree of protection, a moment of inertia of 1kg.cm^2, a stall torque of 233N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

Relevant products

AB7677-F

Verified stock: 0

Anybus X-gateway – EtherNet/IP Scanner - CANopen Slave

HMS Networks

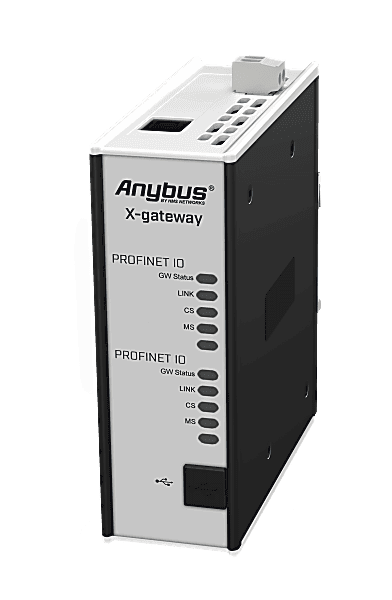

AB7651-F

Verified stock: 0

Anybus X-gateway – PROFINET-IO Device – PROFINET-IO Device

HMS Networks

AB7642-F

Verified stock: 0

HMS Networks

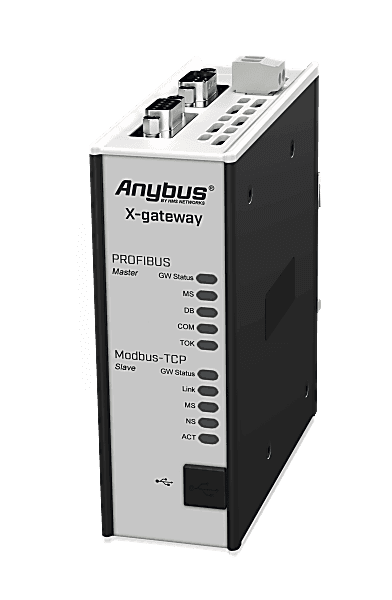

AB7629-F
