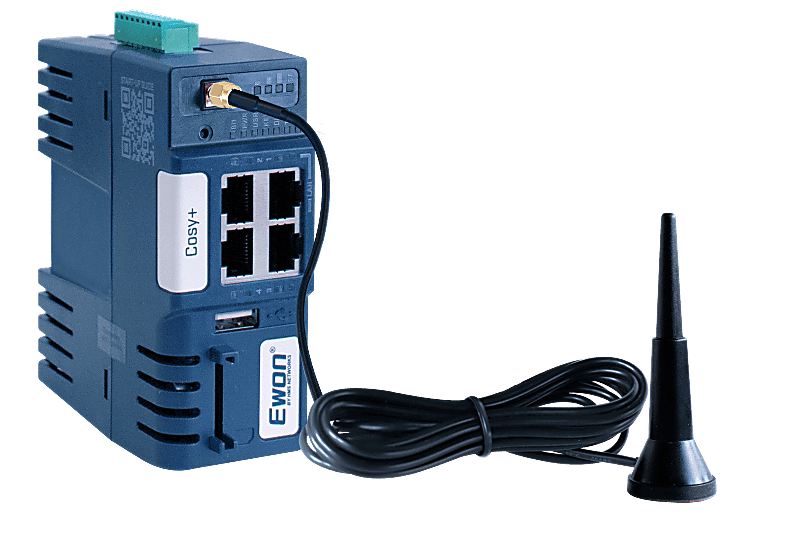

EC7133K_01MA HMS Networks Industrial Automation Components

Product Details

• Power Connector
  9-pole
• Storage Temperature °C Max
  +70 °C
• UL
  Yes
• Net Weight (ERP) (g)
  223.5 g
• Net Width (ERP) (mm)
  42 mm
• Router Features
  IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server
• Frequencies & Bands
  4G: B2, B4, B5, B12, B13, B14, B66, B71. 3G: B2, B5. Automatic fallback to 3G. Compatible with AT&T networks. Not compatible with Verizon.
• WEEE Category
  IT and telecommunications equipment
• Vibration and Shock
  Vibration & shocks tested according to: IEC 60068-2-27 Bumps IEC 60068-2-64 Vibration (broad-band random) IEC 60068-2-6 Vibration (sinusoidal)
• Operating Temperature °C Min
  -25 °C
• Configuration
  Web-based configuration: Embedded web interface with setup wizards for configuration and maintenance (no additional software needed). Basic authentication (login/password) and session control for security.
• CE
  No
• FCC
  Yes
• RoHS Compliant
  Yes
• Country of Origin
  Lithuania
• Input Voltage (V)
  12-24 VDC +/-20%, LPS
• VPN
  OpenVPN either in SSL UDP or TCP.
• UKCA
  No
• Net Depth (ERP) (mm)
  105 mm
• Housing Materials
  Plastic
RCM
No
Environment
Temperature - Operating & Storage tested according to: IEC 60068-2-1 Cold test IEC 60068-2-2 Dry heat test IEC 60068-2-14 Change of temperature IEC 60068-2-30 Cyclic damp heat test
Waste Certification (WEEE)
Yes
Mounting
DIN rail mount (bracket included), Wall mount
Warranty (years)
3
KC
No
Contains Battery
Yes
Dual Usage (ERP)
No
Net Height (ERP) (mm)
117 mm
Antenna
Not Included
LAN Specification
up to 4 ports,10/100 Mb Ethernet
Export Control Classification Number (ECCN) (ERP)
5A992.c
Storage Temperature °C Min
-30 °C
Antenna Connector
SMA
Connectors / Input / Output
1xDO: open drain ( MOSFET) 200mA; isolation 1.5kV,
Not Included (in delivery)
Antenna
Operating Temperature °C Max
+60 °C
VPN Security
Communications between the remote user and the Ewon gateway are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. All users and Ewon units are authenticated using x509 SSL certificates and end-to-
IC
Yes
WAN Specification
up to 3 ports,10/100 Mb Ethernet.
HS Code
8517699000
Packaging Material
Cardboard
Predecessor
EC6133H_00MA
