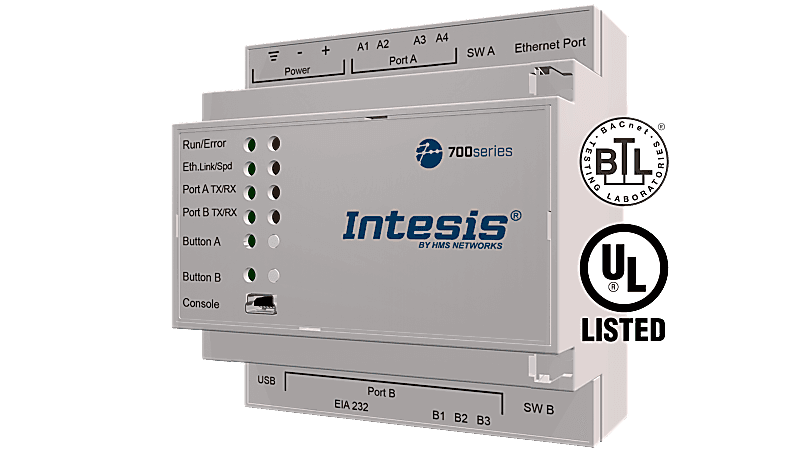

IN701KNX2500000 HMS Networks Industrial Automation Components

Product Details

• BTL
  Yes
• Input Voltage (V)
  For DC: 9 .. 36 VDC, Max: 180 mA, 1.7 W For AC: 24 VAC ±10 %, 50-60 Hz, Max: 70 mA, 1.7 W Recommended voltage: 24 VDC, Max: 70 mA
• KC
  Yes
• CB
  Yes
• Push Buttons
  Factory reset.
• Power Connector
  3-pole
• Housing Materials
  Plastic
• UKPSTI
  Yes
• Dual Usage (ERP)
  No
• Operating Temperature °C Max
  60 °C
• Installation Conditions
  This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting
• Connectors / Input / Output
  Power supply, KNX, Ethernet, Console port USB Mini-B type, USB storage, EIA-232, EIA-485.
• Mounting
  DIN rail mount (bracket included), Wall mount
• Warranty (years)
  3 years
• WEEE Category
  IT and telecommunications equipment
• Country of Origin
  Spain
• Net Weight (ERP) (g)
  194 g
• ETIM Classification
  EC001604
• Net Width (ERP) (mm)
  88 mm
• Capacity
  Up to 250 points.
DIP & Rotary Switches
EIA-485 serial port configuration.
Net Height (ERP) (mm)
56 mm
UL
Yes
Battery Description
Manganese Dioxide Lithium button battery.
Content of Delivery
Intesis Gateway, Installation Manual, USB Configuration cable.
Packaging Material
Cardboard
LED Indicators
Gateway and communication status.
Net Depth (ERP) (mm)
90 mm
CE
Yes
Contains Battery
Yes
Not Included (in delivery)
Power supply not included.
Operating Temperature °C Min
-10 °C
Export Control Classification Number (ECCN) (ERP)
EAR99
HS Code
8517620000
UKCA
Yes
