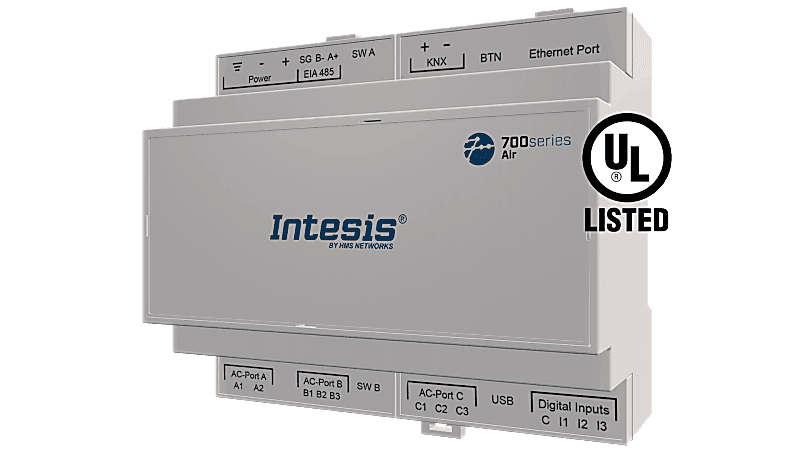

IN775FGLXXSO000 HMS Networks Industrial Automation Components

Product Details

• Content of Delivery
  Intesis Gateway, Installation Manual, USB Configuration cable.
• UL
  Yes
• Push Buttons
  Factory reset. I-Am message (for BACnet only). Normal mode/programming mode switch (for KNX only).
• Input Voltage (V)
  For DC: 12 .. 36 VDC ±10%, Max: 250 mA For AC: 24 VAC ±10 %, 50-60 Hz, Max: 127 mA Recommended voltage: 24 VDC, Max: 127 mA
• UKPSTI
  Yes
• Packaging Material
  Cardboard
• Net Weight (ERP) (g)
  275 g
• CB
  Yes
• Capacity
  Up to 4 indoor units and up to 12 outdoor units.
• Dual Usage (ERP)
  No
• BTL
  Yes
• Mounting
  DIN rail mount (bracket included), Wall mount
• CE
  Yes
• Housing Materials
  Plastic
• UKCA
  Yes
• DIP & Rotary Switches
  EIA-485 serial port configuration.
• Not Included (in delivery)
  Power supply not included.
• ETIM Classification
  EC001604
• Export Control Classification Number (ECCN) (ERP)
  EAR99
• WEEE Category
  IT and telecommunications equipment
LED Indicators
Gateway and communication status.
Power Connector
3-pole
Operating Temperature °C Max
60 °C
Installation Conditions
This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting
Warranty (years)
3 years
Country of Origin
Spain
Operating Temperature °C Min
0 °C
Connectors / Input / Output
Power supply, EIA-485, KNX, Ethernet, HVAC port, Binary inputs (dry contact), Console port USB.
HS Code
8517620000
Contains Battery
No
