INMBSMEB0200000 HMS Networks Industrial Automation Components

Name: INMBSMEB0200000
Brand: HMS Networks

INMBSMEB0200000 on Powermatic Associates

Part#:INMBSMEB0200000

Manufacturer:HMS Networks

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

M-BUS to Modbus TCP & RTU Server Gateway

Product Details

Content of Delivery
Intesis Gateway, Installation Manual, USB Configuration cable.
Packaging Material
Cardboard
Warranty (years)
3 years
HS Code
8517620000
Net Depth (ERP) (mm)
90 mm
Operating Temperature °C Min
0 °C
Country of Origin
Spain
Export Control Classification Number (ECCN) (ERP)
EAR99
Net Weight (ERP) (g)
159 g
KC
Yes
Battery Description
Manganese Dioxide Lithium button battery.
Not Included (in delivery)
Power supply not included.
Installation Conditions
This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting
ETIM Classification
EC001604
Net Height (ERP) (mm)
56 mm
Housing Materials
Plastic
UKPSTI
Yes
Contains Battery
Yes
Capacity
Up to 20 meters.
Connectors / Input / Output
Power supply, MBUS Plug-in screw terminal block, Ethernet, Console port USB, USB storage, EIA-232, EIA-485.

Mounting

DIN rail mount (bracket included), Wall mount

Yes

WEEE Category

IT and telecommunications equipment

Dual Usage (ERP)

Net Width (ERP) (mm)

88 mm

Operating Temperature °C Max

60 °C

Yes

Input Voltage (V)

24VDC +/-10%.

Yes

DIP & Rotary Switches

EIA-485 serial port configuration.

Power Connector

3-pole

LED Indicators

Gateway and communication status.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

INMBSMEB0200000 Related Documents

intesis-brochure.pdf

Similar products from: HMS Networks Industrial Automation Components

EC6133D

HMS Networks

Industrial Internet Router w/antenna, Ethernet + Cellular

26 in stock

EC51410-00-Q1

HMS Networks

COSY 141 (Per Each)

8 in stock

FAC90501

HMS Networks

Flexy 3G+antenna

6 in stock

FAC90501_01

HMS Networks

Flexy / Cosy 3G+ antenna with 2m cable

12 in stock

FLEXY20100

HMS Networks

Flexy DIN Base

4 in stock

1.01.0282.12001

HMS Networks

Ixxat USB-to-CAN V2 embedded

29 in stock

Manufacturer warranty

INMBSMEB0200000 HMS Networks

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare INMBSMEB0200000 with other Industrial Automation Components products

Content of Delivery

Packaging Material

Warranty (years)

HS Code

Net Depth (ERP) (mm)

Operating Temperature °C ...

Country of Origin

Export Control Classifica...

Net Weight (ERP) (g)

Selected product

Backordered

HMS Networks

M-BUS to Modbus TCP & RTU Server Gateway

Content of DeliveryIntesis Gateway, Installatio...

Packaging MaterialCardboard

Warranty (years)3 years

HS Code8517620000

Net Depth (ERP) (mm)90 mm

Operating Temperature °C Min0 °C

Country of OriginSpain

Export Control Classification Number (ECCN) (ERP)EAR99

Net Weight (ERP) (g)159 g

KCYes

29 in stock

HMS Networks

Ixxat USB-to-CAN V2 embedded

Content of DeliveryUSB-to-CAN V2 interface, use...

Packaging MaterialCardboard

Warranty (years)-

HS Code-

Net Depth (ERP) (mm)40 mm

Operating Temperature °C Min-20 °C

Country of Origin-

Export Control Classification Number (ECCN) (ERP)-

Net Weight (ERP) (g)43 g

KC-

20 in stock

Turck

BI1.5-EG08F-AN6X Turck - BI1.5-EG08F-AN6X Inductive Sensor, Stainless Steel Front

Content of Delivery-

Packaging Material-

Warranty (years)-

HS Code-

Net Depth (ERP) (mm)-

Operating Temperature °C Min-

Country of Origin-

Export Control Classification Number (ECCN) (ERP)-

Net Weight (ERP) (g)-

KC-

About the manufacturer

Powermatic Associates is an authorized HMS Networks distributor, committed to bringing advanced industrial connectivity solutions to our clientele. HMS Networks stands as a global leader in industrial communication and the Industrial Internet of Things (IIoT). With a focus on bridging communication gaps in automation, HMS Networks develops cutting-edge products that facilitate seamless data and in...

Recently viewed products

MDI3CRL34A7-EQ

Novanta IMS

Novanta IMS MDI3CRL34A7-EQ is a stepper motor characterized by its integrated driver and 2-phase DC stepper motor functionality. It features an external single-end 512-line optical encoder and a single motor stack, enhanced by the Plus 2 version for expanded features. This part offers a 14-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage ranges from 12Vdc to 75Vdc, with specific ratings at 24Vdc, 48Vdc, and 72Vdc. It is designed for mounting with an 85x85mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI3CRL34A7-EQ has an IP20 degree of protection, a moment of inertia of 1kg.cm^2, a stall torque of 233N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

LMHOE571

Novanta IMS

Novanta IMS LMHOE571 is a stepper motor designed for applications requiring integrated drive and high-torque capabilities. This model falls within the high-torque stepper motors sub-range and features a single motor stack in an open-loop system. It offers a variety of connection types, including a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector, ensuring versatile integration options. The LMHOE571 supports Ethernet/IP and Modbus TCP communication protocols for efficient network integration. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The motor is designed for mounting via a 57x57mm flange, providing a secure installation. With a degree of protection rated at IP20, it is suited for use in environments where protection against solid objects is necessary. The motor's moment of inertia is 0.14kg.cm^2, and it delivers a stall torque of 107N.cm. It achieves precise motion control with a resolution of 1.8° step angle.

0 in stock

PSWS 3M-10/S90

Turck

PSWS 3M-10/S90 Turck - PSWS 3M-10/S90 Actuator and Sensor Cordset, Connection Cable

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

HOM2175SB

Schneider Electric

Square D by Schneider Electric HOM2175SB is a load center designed for use with a secondary surge arrestor. It has a rated current of 5A and operates at a rated voltage of 120Vac/240Vac. This load center is protected by a NEMA 1 enclosure and is suitable for single-phase (1PH) electrical networks.

0 in stock

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

Turck

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611 Turck - BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

Relevant products

INMBSMEB1200000

Verified stock: 0

M-BUS to Modbus TCP & RTU Server Gateway

HMS Networks

INMBSFGL001R000

Verified stock: 0

Fujitsu RAC and VRF systems to Modbus RTU Interface (to remote controller)

HMS Networks

INMBSRTR0320000

Verified stock: 0

Modbus RTU to Modbus TCP Router

HMS Networks

INMBSPAN001I100

Verified stock: 0

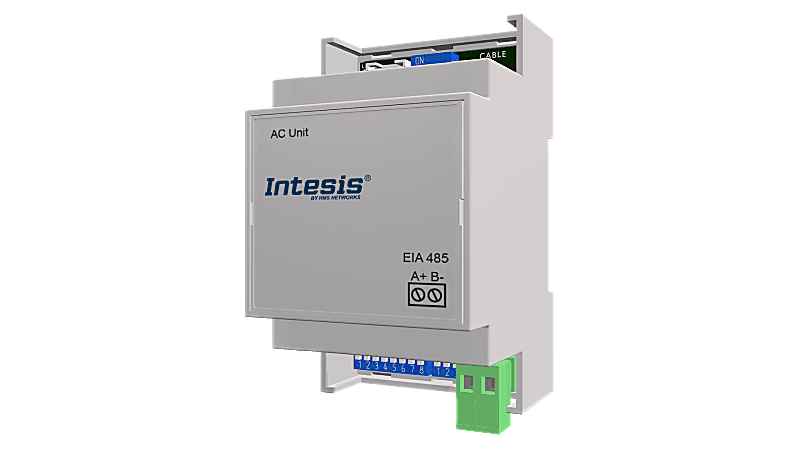

Panasonic Etherea AC units to Modbus RTU Interface
