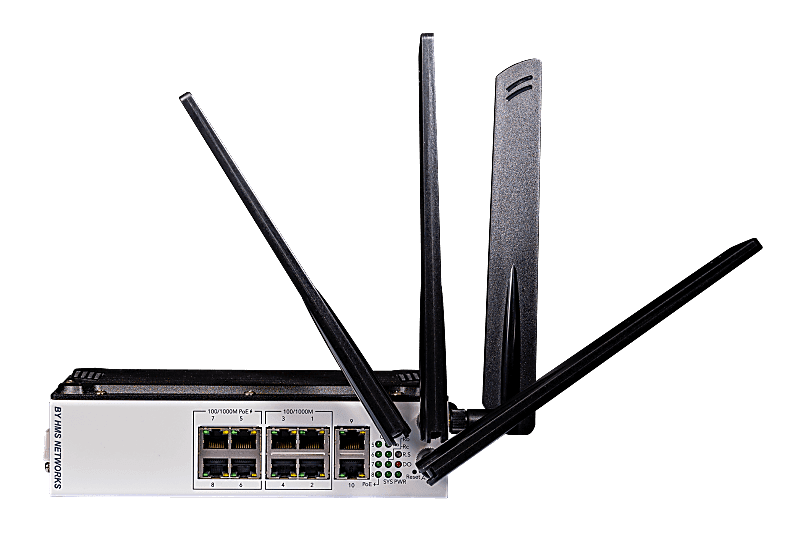

NV1000 HMS Networks Industrial Automation Components

Product Details

• Content of Delivery
  Product unit, 4-pin removable terminal block connector, wall mounting kit, 4 x antennas
• Traffic Management
  Flow Control, Rate Control, Port Mirror, CoS, QoS, RFC 2474 DiffServ
• Operating Temperature °C Max
  70 °C
• Cellular Standards
  5G/4G Multi-mode, 3GPP Rel.15, 5G NSA and SA mode, LTE DL Cat 16/UL Cat 18
• Connectors / Input / Output
  LAN:8x 10/100/1000Base-T RJ45, AutoNegotiation, Auto MDI/MDI-X, with 4x IEEE 802.3af/at PoE/PoE+ WAN:2x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X
• Mounting
  DIN-rail (EN 50022 standard), Wall mount
• Wireless Security
  IEEE 802.1X/RADIUS, TLS v1.2, HTTPs/SSH, First login password management
• WAN Specification
  WAN:2x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X
• Net Weight (ERP) (g)
  2000 g
• Redundancy
  ERPSv2 (HW-based CFM), STP/RSTP/MSTP, Port Trunk/LACP
• Storage Temperature °C Min
  -40 °C
• Antenna
  Included
• LAN Specification
  8x 10/100/1000Base-T RJ45, AutoNegotiation, Auto MDI/MDI-X, with 4x IEEE 802.3af/at PoE/PoE+
• WEEE Category
  IT and telecommunications equipment
• Input Voltage (V)
  24 VDC (9.6-57 VDC for both PoE/Non-PoE)
• Antenna Connector
  SMA
• HS Code
  8517699000
• Reverse Polarity Protection
  Yes
• Storage Temperature °C Max
  85 °C
• Country of Origin
  Taiwan (Province of China)
Power Connector
2-pole
Frequencies & Bands
5G NR n78, LTE FDD B1/B3/B7/B20, LTE TDD B38/B42/B43, ENDC b1/n78, b3/n78, b7/n78, b20/n78, b38/n78. Other bands available on request.
Dual Usage (ERP)
No
Housing Materials
Metal Housing
CE
Yes
Protection Class IP
IP30
Operating Temperature °C Min
-40 °C
Contains Battery
No
Export Control Classification Number (ECCN) (ERP)
5A992.c
