OTBA5 Banner Sensor Accessories
Part#:OTBA5
Alt. Part#:27986
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description

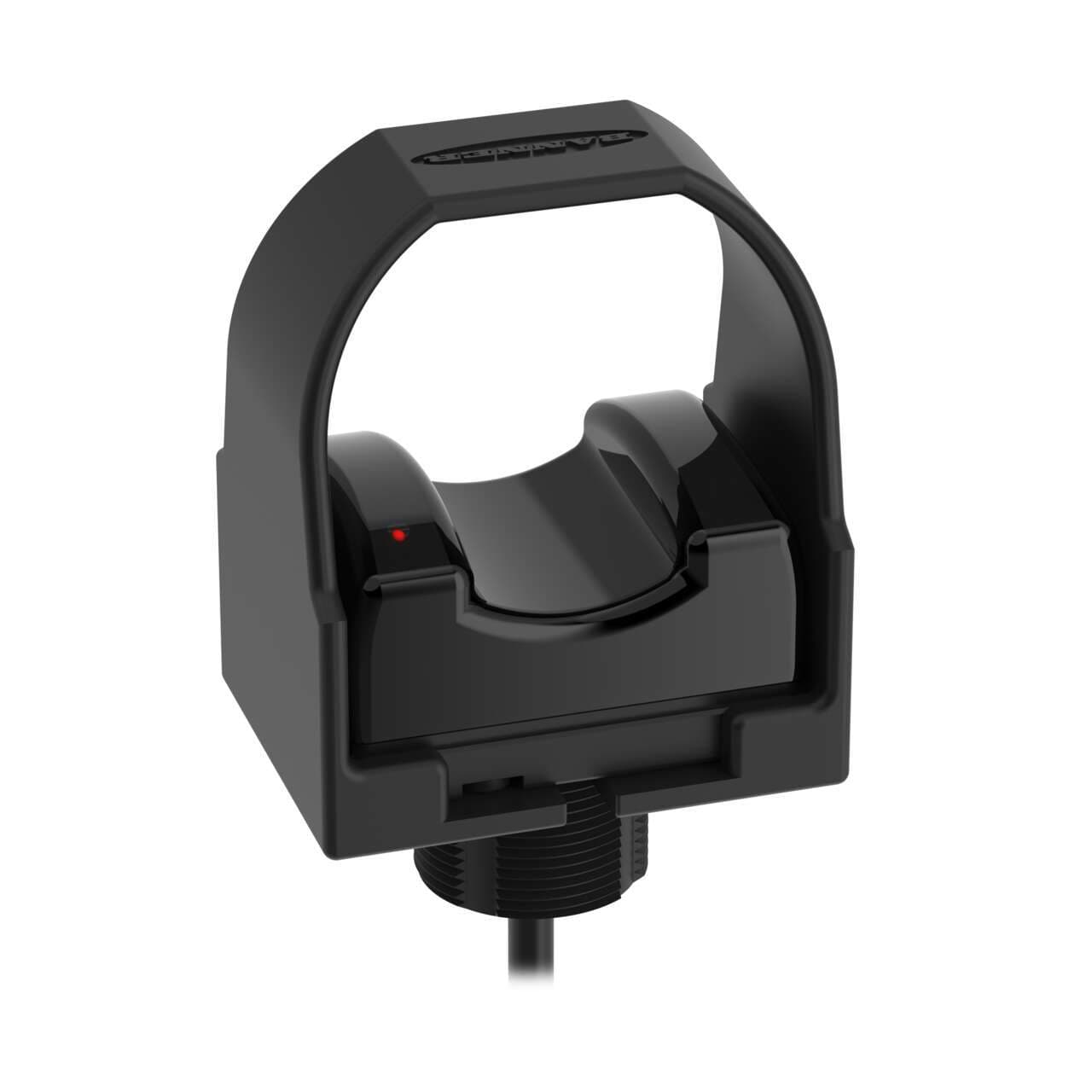

OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 120 V ac; Upper Housing: Polysulfone; Output: E/M Relay (SPDT); 2 m (6.5 ft) Integral Cable
Product Details
- Weight 303.453048 g
- Country Of Origin MX
- Power AC
- Mounting Thread M30 x 1.5
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Feature: Chemical Resistant No
- Cable Length (m) 9
- Number of Input Pins/Conductors 5
- Number of Beams 1
- Button Operation Momentary
- Wireless No
- Power Source AC
- Max Input Response Time (ms) 100
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Feature: Audible No
- Actuation Yes
- Non-Illuminated Yes
- Product Size (mm) Other
- Supply Voltage 105-130 V ac
- Environmental Rating IP66
- Field Cover Color Black
- Secondary Material Thermoplastic
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Thermoplastic Polysulfone
- Housing Style Base Mount - Saddle
- Operation Normally Open/Normally Closed
- Output Type SPDT e/m Relay
- Max Output Response Time (ms) 100
- Min Op. Temperature (°C) -20
- IO Link No
- Activation Function Optical
- Input Type AC
- Connection Cable
- Sensing Mode (General) Single Point Optical
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Max Op. Temperature (°C) 50
- Primary Housing Color Black
- Feature: Quick Disconnect No
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of OTBA5 on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering OTBA5 is a photo-electric optical touch-activated button designed for surface or base flush mounting with a 30mm hole requirement. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover for its design. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage of 105Vac-130Vac (120Vac nominal). It offers a degree of protection rated at IP66 NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13. The OTBA5 has a saddle/yoke-shaped body made from a polysulfone upper housing and a thermoplastic polyester base, presented in a black color. Its operating mode is momentary, offering Normally Open (NO) or Normally Closed (NC) configurations, and it includes 1 x digital output (SPDT / 1NO/NC relay contact type) for touch activation.
