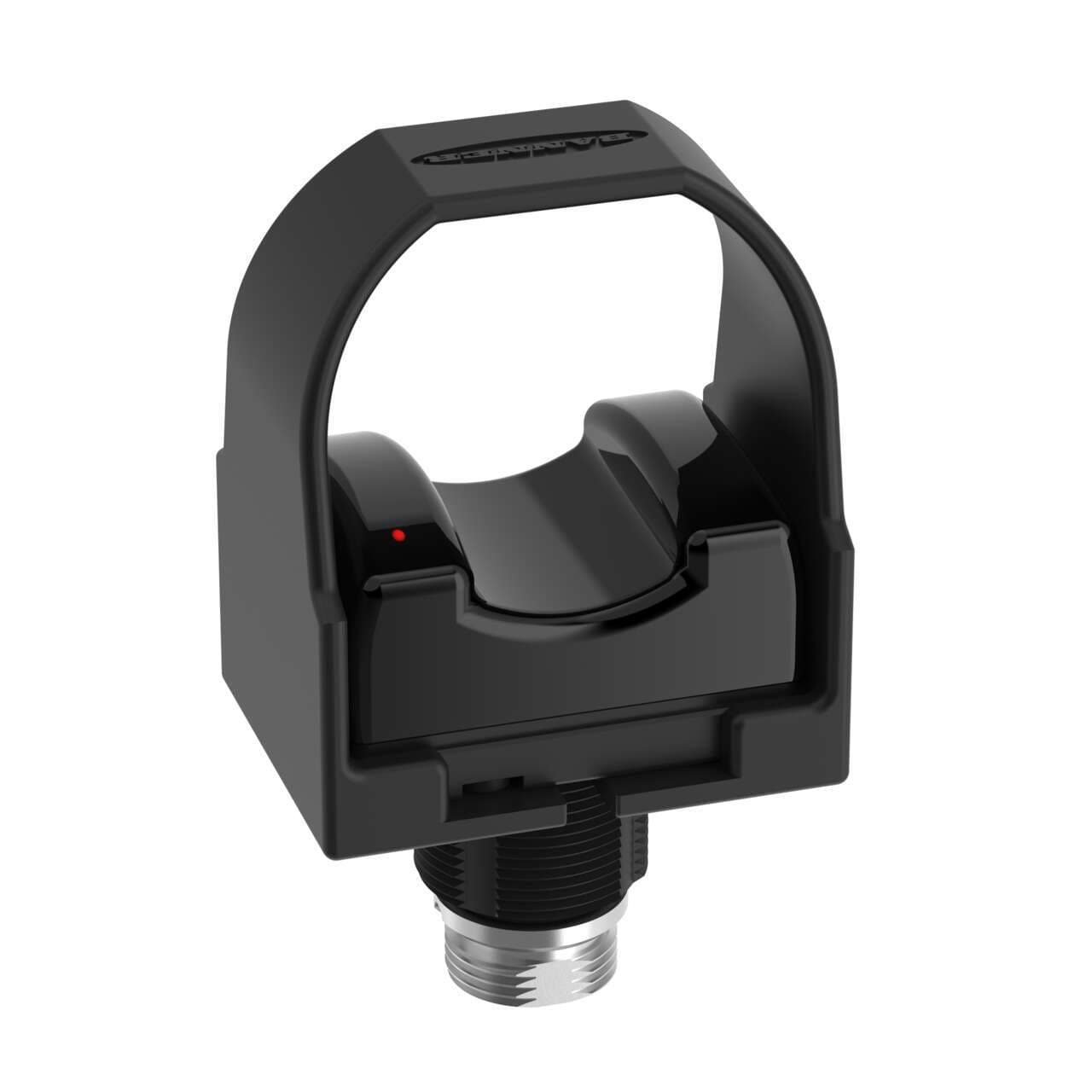

OTBVR81LQD Banner Sensor Accessories
Part#:OTBVR81LQD
Alt. Part#:34041
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 20-30 V ac or dc; Upper Housing: Polycarbonate; Output: E/M Relay (SPDT); Mini-style Integral QD
Product Details
- Weight 222.713672 g
- Country Of Origin MX
- Primary Housing Material Polycarbonate
- Number of Input Pins/Conductors 5
- Max Output Response Time (ms) 100
- Feature: Quick Disconnect Yes
- Power Source DC or AC
- Output Type SPDT e/m Relay
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Modbus RTU No
- Wireless No
- Cable Length (m) 2
- Housing Style Base Mount - Saddle
- Number of Beams 1
- Secondary Material Thermoplastic
- Pro-Editor Compatible (Discrete) No
- Power DC or AC
- Operation Normally Open/Normally Closed
- Min Op. Temperature (°C) -20
- Feature: Audible No
- Non-Illuminated Yes
- Activation Function Optical
- Max Input Response Time (ms) 100
- Field Cover Color Black
- Max Op. Temperature (°C) 50
- Sensing Mode (General) Single Point Optical
- Product Size (mm) Other
- Environmental Rating IP66
- Primary Housing Color Red
- IO Link No
- Actuation Yes
- Mounting Thread M30 x 1.5
- Input Type AC
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Connection Integral QD
- Supply Voltage 20-30 V dc/ac
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Button Operation Momentary
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of OTBVR81LQD on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering OTBVR81LQD is a photo-electric optical touch-activated button designed for versatile mounting options, including surface or base flush with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover for its design. This touch-button is pre-equipped with a 5-pin 7/8"-16UN-2B Mini-style QD connector for connectivity and supports a supply voltage range of 20Vac-30Vac (24Vac nominal) and 20Vdc-30Vdc (24Vdc nominal). It boasts an IP66 NEMA 1 NEMA 3 NEMA 4 NEMA 4X NEMA 12 NEMA 13 degree of protection, ensuring durability in various environments. The OTBVR81LQD has a saddle/yoke-shaped body made from Polycarbonate (PC) for the upper housing and Thermoplastic Polyester for the base, with a red housing color. It offers a momentary NO (Normally Open) or NC (Normally Closed) operating mode and includes 1 x digital output (SPDT / 1NO/NC relay contact type) for its touch function.
