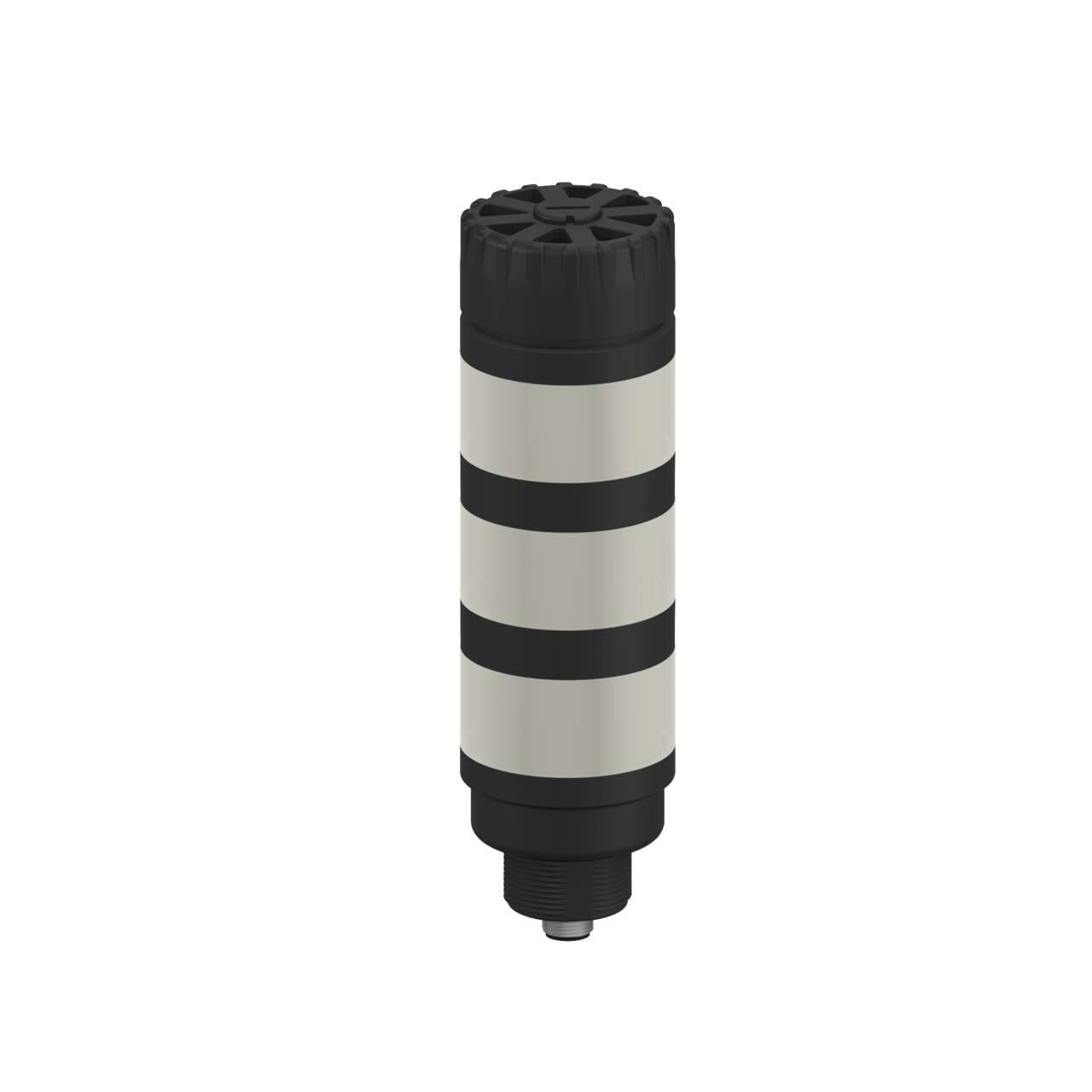

TL503AKQ Banner Signal Towers
Part#:TL503AKQ
Alt. Part#:804944
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL50 Pro Tower Light with IO-Link Audible, Standard Black Housing: 3 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP50; Colors: Multicolor; 4-pin M12 Integral QD
Product Details
- Weight 285.76296 g
- Country Of Origin MX
- Power DC
- Number of Tower Light Segments 4
- Animation Option 1 Programmable
- Product Size (mm) 50
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 200.7
- Housing Style Base Mount - Tower
- Max Current Color (mA) 100
- Min Audible Intensity (db at 1m) 62
- Modbus RTU No
- Power Source DC
- Color Technology RGB IO-Link
- NEMA Type and UL Type Rating NEMA and UL 13
- Supply Voltage 18-30 V dc
- Max Op. Temperature (°C) 50
- IO Link Yes
- Indication Yes
- Number of Input Pins/Conductors 4
- Max Current - Audible Alarm (mA) 25
- Color Input Control Communication Protocol
- Input Type Communication Protocol
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Primary Housing Material ABS
- Dimming Option Programmable
- Max Input Response Time (ms) 20
- Primary Window Material Polycarbonate Diffused
- Mounting Thread M30 x 1.5
- Color Option 1 RGB
- Audible Alarm Type Continuous
- Min Op. Temperature (°C) -20
- Number of Colors / Segments 3
- Connection Integral QD
- Audible Operating Frequency (kHz) 2.7
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Primary Housing Color Black
- Feature: Audible Yes
- Pro-Editor Compatible (Discrete) No
- Environmental Rating IP50
- Feature: Quick Disconnect Yes
- Max Audible Intensity (db at 1m) 92
- Multi-Color Device Simultaneous Colors On
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TL503AKQ on Powermatic Associates is $356.00. Order now.
About the product
Banner Engineering TL503AKQ is a tower light from the Standard series, featuring a monolithic design with continuous sound and IO-Link compatibility. It includes 3-tiers of 14-color multicolor LED illumination, designed for audible programmable tower or stack light applications. The construction utilizes polycarbonate (PC) for the windows and segments, with an ABS base and covers. This part has a 50mm / 2" diameter and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). It offers surface or base pole mounting options with an M30 thread. The TL503AKQ can operate in ambient air temperatures ranging from -20°C to +50°C and has a degree of protection rated at IP50 NEMA 13 UL type 13. Its cylindrical shape and a current consumption of 100mA complete its specifications.
