WLS28-2XW570SQ Banner Light Bars
Part#:WLS28-2XW570SQ
Alt. Part#:88085
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLS28-2 Work Light Strip; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; 4-pin M12 Integral QD
Product Details
- Weight 566.99 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP65; IP67; IP69
- Feature: Hazardous Area No
- Power DC
- Number of Input Pins/Conductors 4
- Feature: Audible No
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Illuminated Length (LxWxH mm) 570.0
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 608.0 x 28.0 x 20.9
- Feature: Chemical Resistant No
- Number of Colors / Segments 1
- Dimming Option High-Low-Off
- Min Op. Temperature (°C) -40
- Power Source DC
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Feature: Washdown Rated Yes
- Illumination Yes
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Mounting Thread No Thread
- Color Option 1 White
- Max Op. Temperature (°C) 70
- Modbus RTU No
- Product Size (mm) 28
- Lumens Color 1 1600
- Primary Window Material Polycarbonate Clear
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2XW570SQ on Powermatic Associates is $352.00. Order now.
About the product

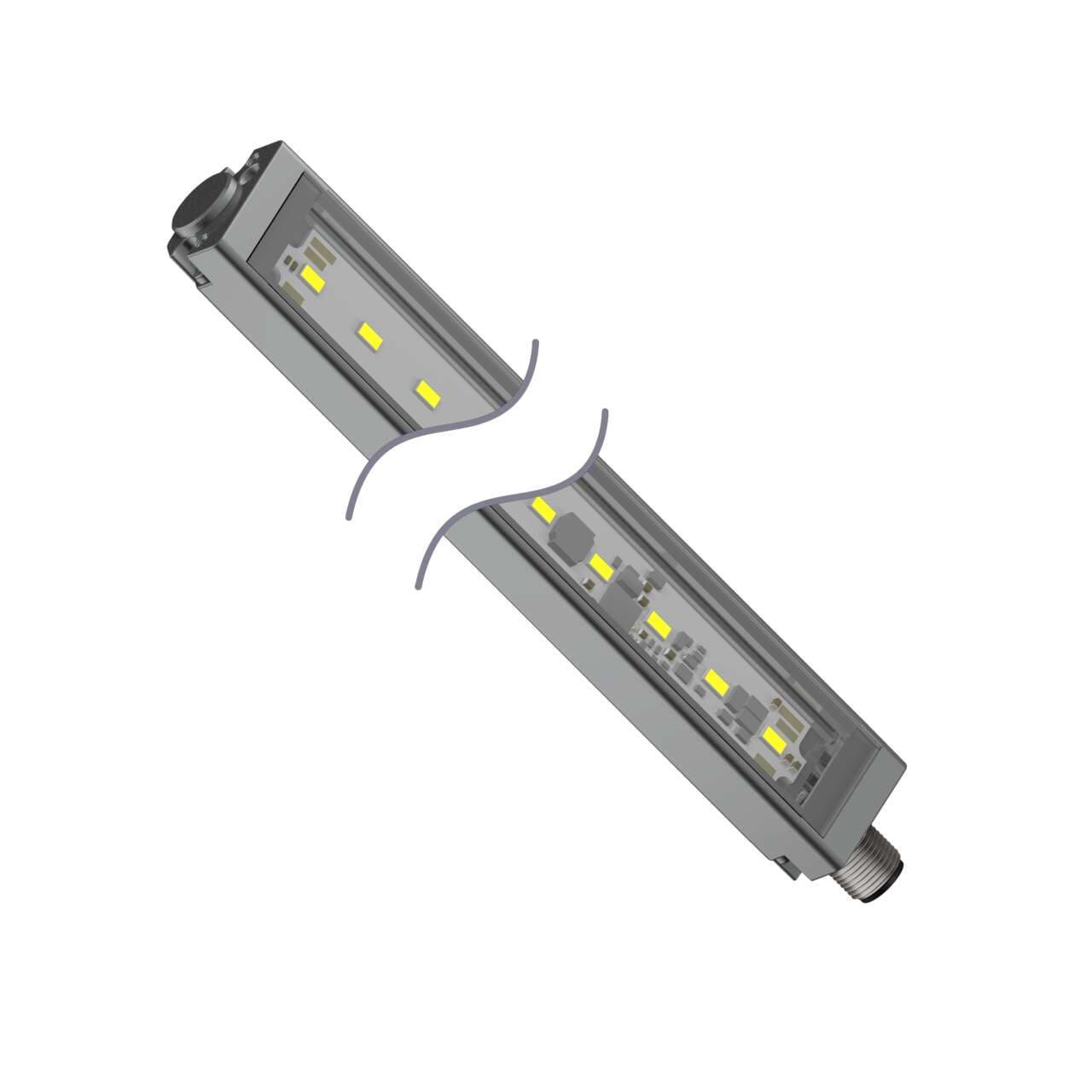

Banner Engineering WLS28-2XW570SQ is a sealed LED industrial strip light designed for task lighting applications. It features a clear plastic window with 1-color Cool White (W) LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this linear light strip are L570mm x W28mm, constructed with a Polycarbonate (PC) window and an Anodized Aluminium housing. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The WLS28-2XW570SQ offers a degree of protection rated at IP65, IP67, and IP69K, making it suitable for surface or wall mounting in environments with an ambient air temperature range of -40°C to +70°C. It includes 1 x digital input (12-30Vdc) for color control and delivers a luminous flux of 1600 lm (lumens).
