100SV43A Schneider Electric Industrial Automation Components

100SV43A on Powermatic Associates
Schneider Electric

Part#:100SV43A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

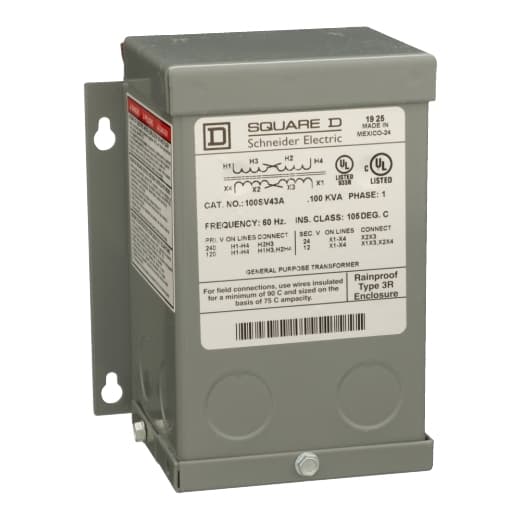

Schneider Electric - 100SV43A

Product Details

  • Product
    Buck and Boost Transformer
  • Primary Voltage
    120 x 240 V
  • Enclosure Type
    NEMA 3R
  • Secondary Voltage
    12/24 V
  • Enclosure Code
    2A
  • Insulation Temperature
    221 °F (105 °C)
  • Temperature Rise
    55 °C
  • Power Rating
    0.1 kVA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 100SV43A on Powermatic Associates is $271.00. Order now.
