2510FG1P Schneider Electric Industrial Automation Components

2510FG1P on Powermatic Associates
Schneider Electric

Part#:2510FG1P

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

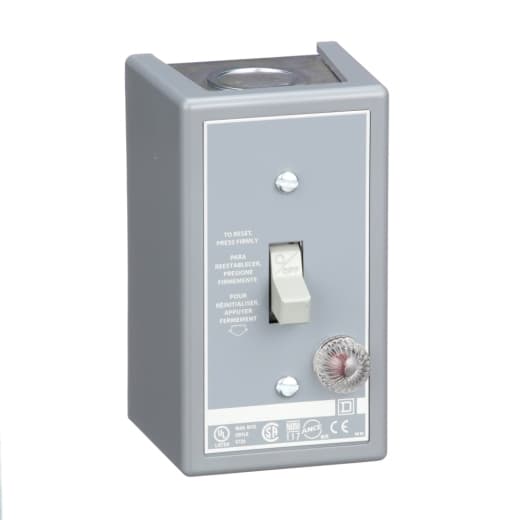

Schneider Electric - 2510FG1P

Product Details

  • Current Rating
    16 A
  • Electrical Connection
    Screw clamp terminals
  • Wire Gauge
    AWG 14...AWG 12 copper
  • Cable Entry
    0.5" and 0.75" knock-outs (top and bottom)
  • Control Unit
    Toggle switch
  • Motor Starter Type
    Non reversing
  • Voltage Rating
    277 V AC
  • Pilot Light
    Red indicator
  • Depth
    2.75 in (69.85 mm)
  • Type
    F
  • Height
    4.25 in (107.95 mm)
  • Overload Relay Type
    Melting alloy
  • Number Of Phases
    1 phase
  • Number Of Poles
    1P
  • Net Weight
    0.79 lb(US) (0.36 kg)
  • Reset
    Manual
  • Product
    Single Unit Manual Starter
  • Width
    2.44 in (61.98 mm)
  • Horsepower Rating
    1 hp 115 V AC 1 hp 230 V AC 1 hp 277 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2510FG1P on Powermatic Associates is $135.56. Order now.
