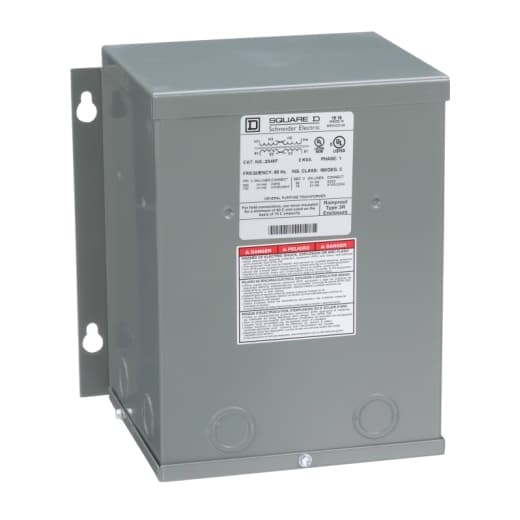

2S46F Schneider Electric Industrial Automation Components

Name: 2S46F
Brand: Schneider Electric
Price: 1448 USD
Availability: BackOrder

Part#:2S46F

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - 2S46F

Product Details

Temperature Rise
115 °C
Insulation Temperature
356 °F (180 °C)
Product
Buck and Boost Transformer
Power Rating
2 kVA
Secondary Voltage
16/32 V
Enclosure Code
9A
Primary Voltage
120 x 240 V
Enclosure Type
NEMA 3R

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2S46F on Powermatic Associates is $1,448.00. Order now.
