45T3HNV Schneider Electric Industrial Automation Components

45T3HNV on Powermatic Associates
Schneider Electric

Part#:45T3HNV

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

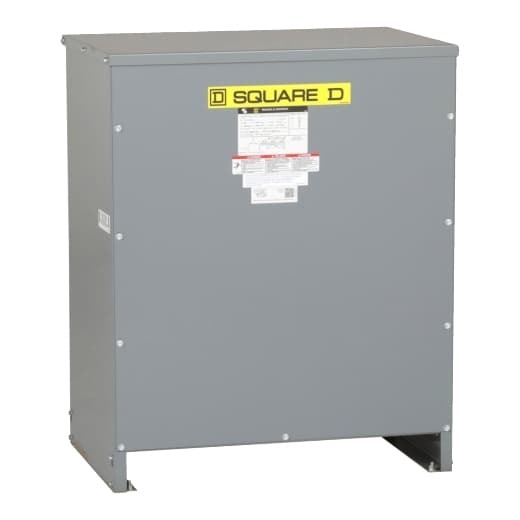

Schneider Electric - 45T3HNV

Product Details

  • Phase
    3 phase
  • Full Capacity Taps
    6 2.5 % 2+ 4-
  • Winding Material
    Aluminium
  • Primary Voltage
    480 V delta
  • Enclosure Code
    19E
  • Secondary Voltage
    208Y/120 V
  • Product
    Non-Ventilated Transformer
  • Power Rating
    45 kVA
  • Temperature Rise
    150 °C
  • Insulation Temperature
    428 °F (220 °C)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 45T3HNV on Powermatic Associates is $14,876.00. Order now.
