5S67F Schneider Electric Industrial Automation Components

5S67F on Powermatic Associates
Schneider Electric

Part#:5S67F

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

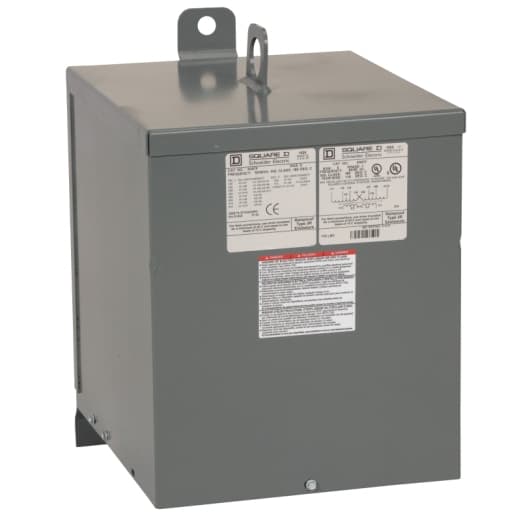

Schneider Electric - 5S67F

Product Details

  • Full Capacity Taps
    0
  • Temperature Rise
    115 °C
  • Enclosure Material
    Painted sheet steel
  • Width
    9.75 in (247.65 mm)
  • Enclosure Code
    13B
  • Primary To Secondary Voltage
    190/200/208/220 x 380/400/416/440 V 110/220 V
  • Height
    14.75 in (374.65 mm)
  • Depth
    11.75 in (298.45 mm)
  • Product Or Component Type
    Dry Sealed Transformer
  • Power Rating
    5 kVA
  • Phase
    1 phase
  • Enclosure Mounting
    Wall mounted

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5S67F on Powermatic Associates is $3,448.00. Order now.
