9050JCK16V20 Schneider Electric Industrial Automation Components

9050JCK16V20 on Powermatic Associates
Schneider Electric

Part#:9050JCK16V20

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

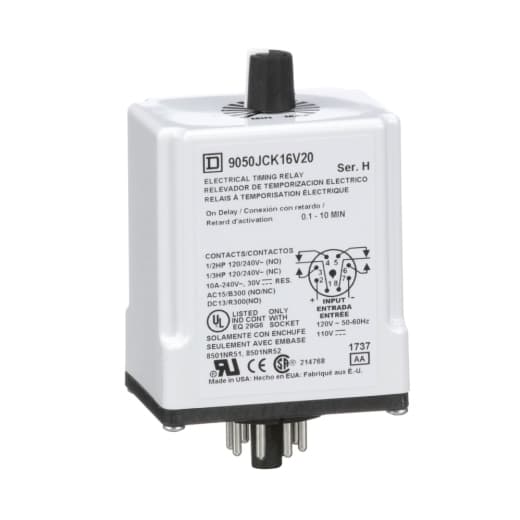

Schneider Electric - 9050JCK16V20

Product Details

  • Contact Composition
    2 NO + 2 NC
  • Current Rating
    10 A
  • Timing Range
    0.1...10 min
  • Timing Mode
    On-delay
  • Maximum Switching Voltage
    240 V AC
  • Mounting Type
    Socket
  • Switch Function
    DPDT
  • Power Consumption
    2 VA
  • Number Of Pins
    8
  • Product Range
    9050JCK
  • Shape Of Pins
    Tubular
  • Product Type
    Timer
  • Contact Material
    Silver nickel
  • For Use With
    8501NR51 8501NR52
  • Supply Voltage
    120 V AC 110 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9050JCK16V20 on Powermatic Associates is $87.00. Order now.

9050JCK16V20 Related Documents

Catalog-1631037046397.pdfInstruction Sheet-1631037046386.pdfProduct Datasheet-1631037046378.pdf
