9080LBA165202 Schneider Electric Industrial Automation Components

9080LBA165202 on Powermatic Associates
Schneider Electric

Part#:9080LBA165202

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

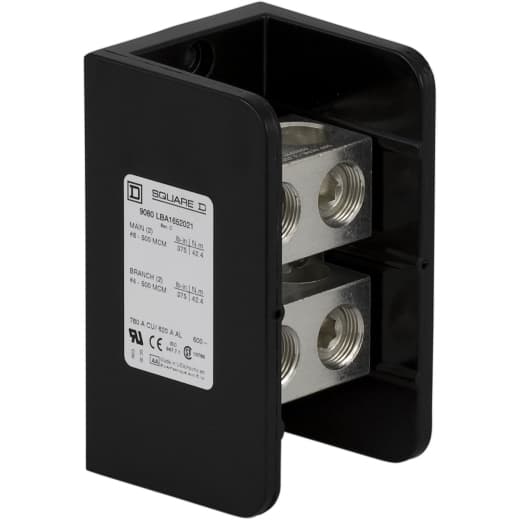

Schneider Electric - 9080LBA165202

Product Details

  • Electrical Connection
    Tin plated aluminium lugs
  • Voltage Rating
    600 V AC/DC
  • Mounting Type
    Surface mount
  • Depth
    3.13 in (79.50 mm)
  • Range
    9080LB
  • Height
    5.5 in (139.70 mm)
  • Width
    3.17 in (80.52 mm)
  • SCCR
    100 kA UL 508 A
  • Number Of Poles
    1
  • Block Material
    Phenolic block
  • Product
    Power Distribution Block
  • Ambient Air Temperature For Operation
    -40…302 °F (-40…150 °C)
  • End Barrier
    9080LB51
  • Wire Stripping Length
    Line 1.06 in (26.92 mm) Load 1.06 in (26.92 mm)
  • Current Rating
    620 A copper 500 A aluminium
  • Terminals Per Pole
    2 line 2 load
  • Terminal Tightening Torque
    Line lug 275 lbf.in (31.07 N.m) AWG 4...350 kcmil copper or aluminium Load lug 275 lbf.in (31.07 N.m) AWG 4...350 kcmil copper or aluminium
  • Wire Size
    Line 2, AWG 6...350 kcmil, copper or aluminium Load 2, AWG 6...350 kcmil, copper or aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9080LBA165202 on Powermatic Associates is $118.36. Order now.
