9080LBA362104 Schneider Electric Industrial Automation Components

9080LBA362104 on Powermatic Associates
Schneider Electric

Part#:9080LBA362104

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

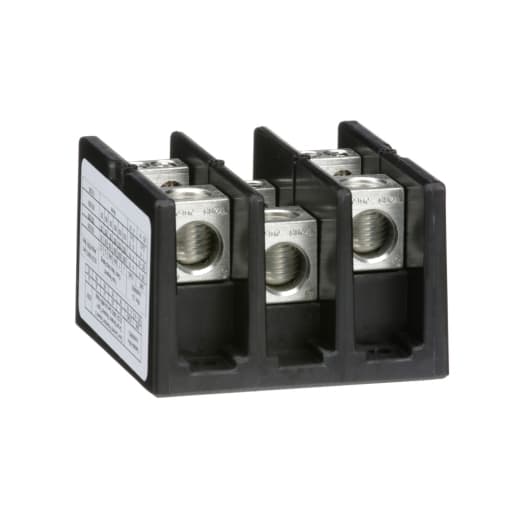

Schneider Electric - 9080LBA362104

Product Details

  • Width
    1.94 in (49.28 mm)
  • SCCR
    100 kA UL 508 A
  • Number Of Poles
    3
  • Block Material
    Phenolic block
  • Height
    2.88 in (73.15 mm)
  • Electrical Connection
    Tin plated aluminium lugs
  • Product
    Power Distribution Block
  • Depth
    1.78 in (45.21 mm)
  • Ambient Air Temperature For Operation
    -40…302 °F (-40…150 °C)
  • Net Weight
    0.49 lb(US) (0.22 kg)
  • Voltage Rating
    600 V AC/DC
  • Mounting Type
    Surface mount
  • Range
    9080LB
  • Short Circuit Current Rating
    65 kA
  • End Barrier
    9080LB23
  • Terminals Per Pole
    1 line 4 load
  • Wire Size
    Line 4, AWG 14...AWG 2/0, copper or aluminium Load 2, AWG 14...AWG 4, copper or aluminium
  • Current Rating
    175 A copper 135 A aluminium
  • Wire Stripping Length
    Line 0.5 in (12.70 mm) Load 0.44 in (11.18 mm) top Load 0.75 in (19.05 mm) bottom
  • Terminal Tightening Torque
    Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium Line lug 35 lbf.in (3.95 N.m) AWG 12...AWG 10 copper or aluminium Line lug 35 lbf.in (3.95 N.m) AWG 14 copper Line lug 120 lbf.in (13.56 N.m) AWG 6...AWG 2/0 copper or aluminium L

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9080LBA362104 on Powermatic Associates is $82.13. Order now.

9080LBA362104 Related Documents

Product Datasheet-1631036299305.pdfInstruction Sheet-1631036299302.pdfCatalog-1631036299300.pdf
