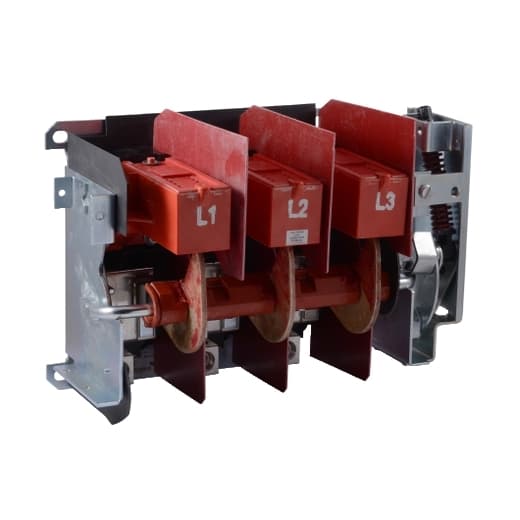

9422TF1 Schneider Electric Industrial Automation Components

9422TF1 on Powermatic Associates
Schneider Electric

Part#:9422TF1

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - 9422TF1

Product Details

  • Mounting Type
    Flange rod variable depth
  • Product
    Disconnect Switch
  • Range
    9422T
  • Handle Type
    Ordered separately
  • Current Rating
    200 A
  • Disconnect Type
    Non-fusible disconnect switch
  • Horsepower Rating
    40 hp 200 V AC 60 hp 230 V AC 125 hp 460 V AC 150 hp 575 V AC 40 hp 250 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9422TF1 on Powermatic Associates is $1,607.48. Order now.

9422TF1 Related Documents

Product Datasheet-1631036387813.pdfCatalog-1631036387872.pdfInstruction Sheet-1631036387810.pdf
