9422TF2 Schneider Electric Industrial Automation Components

9422TF2 on Powermatic Associates
Schneider Electric

Part#:9422TF2

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

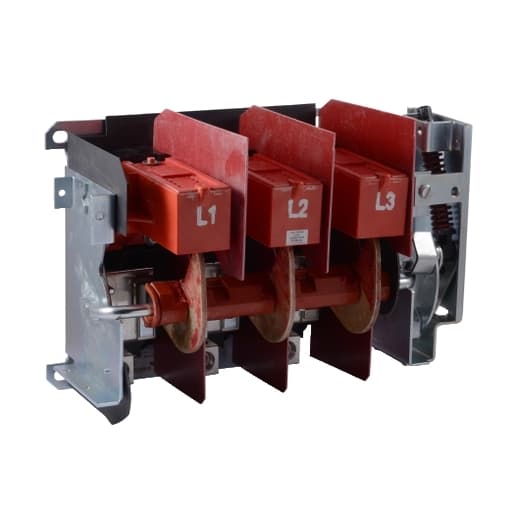

Schneider Electric - 9422TF2

Product Details

  • Current Rating
    200 A
  • Fuse Rating
    200 A 250/600 V
  • Mounting Type
    Flange rod variable depth
  • Product
    Disconnect Switch
  • Disconnect Type
    Fusible disconnect switch
  • Range
    9422T
  • Handle Type
    Ordered separately
  • Horsepower Rating
    40 hp 200 V AC 60 hp 230 V AC 125 hp 460 V AC 150 hp 575 V AC 40 hp 250 V DC
  • Fuse Type
    H K J R

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9422TF2 on Powermatic Associates is $1,790.44. Order now.

9422TF2 Related Documents

Catalog-1631036746386.pdfProduct Datasheet-1631036746371.pdfInstruction Sheet-1631036746374.pdf
