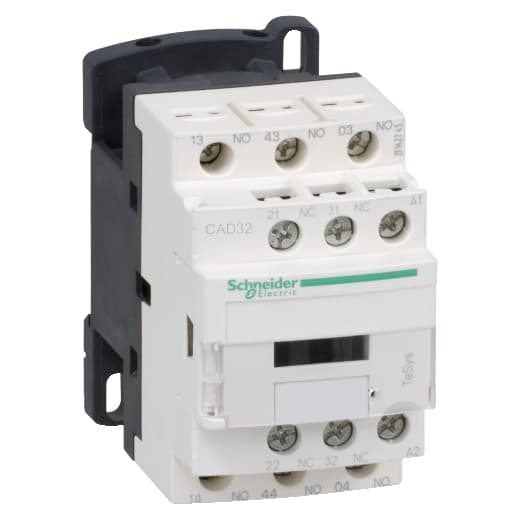

CAD32X7 Schneider Electric Industrial Automation Components

Product Details

• Contactor Application
  Control circuit
• [Uc] Control Circuit Voltage
  600 V AC 50/60 Hz
• [Ue] Rated Operational Voltage
  <= 690 V AC 25...400 Hz
• Pole Contact Composition
  3 NO + 2 NC
• Hold-In Power Consumption In VA
  8 VA 50 Hz 68 °F (20 °C))
• Device Short Name
  CAD
• [Ith] Conventional Free Air Thermal Current
  10 A 140 °F (60 °C)
• Maximum Operating Rate
  180 cyc/mn
• Height
  3.03 in (77 mm)
• Associated Fuse Rating
  10 A gG IEC 60947-5-1
• Minimum Switching Current
  5 mA
• Product Or Component Type
  Control relay
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Mechanical Durability
  30 Mcycles
• Insulation Resistance
  > 10 MOhm
• Control Circuit Type
  AC 50/60 Hz
• Range
  TeSys
• Inrush Power In VA
  70 VA 50 Hz 68 °F (20 °C))
• Net Weight
  1.28 lb(US) (0.58 kg)
• Product Name
  TeSys CAD
Width
1.77 in (45 mm)
Depth
3.31 in (84 mm)
Minimum Switching Voltage
17 V
Mounting Support
Rail Plate
Irms Rated Making Capacity
140 A AC IEC 60947-5-1 250 A DC IEC 60947-5-1
Non-Overlap Time
1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact
Tightening Torque
10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm
Utilisation Category
AC-14 AC-15 DC-13
[Icw] Rated Short-Time Withstand Current
100 A - 1 s 120 A - 500 ms 140 A - 100 ms
[Ui] Rated Insulation Voltage
600 V UL 600 V CSA 690 V IEC 60947-5-1
Control Circuit Voltage Limits
0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
Operating Time
12...22 ms coil energisation and NO closing 4...12 ms coil de-energisation and NO opening 4...19 ms coil energisation and NC opening 6...17 ms coil de-energisation and NC closing
Connections - Terminals
screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end screw clamp termin
Mechanical Robustness
Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations control
