D221NRB Schneider Electric Industrial Automation Components

Name: D221NRB
Brand: Schneider Electric
Price: 188 USD
Availability: BackOrder

Part#:D221NRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

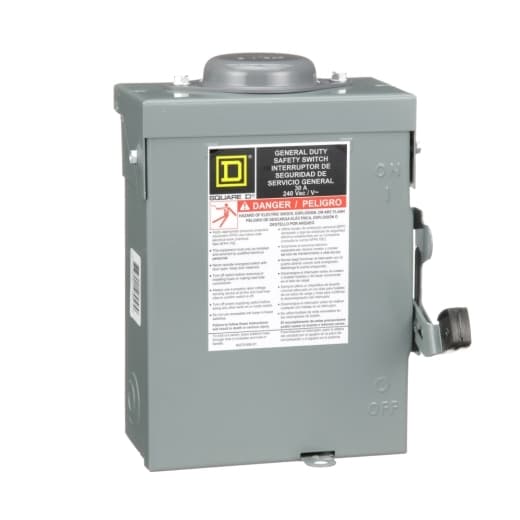

Schneider Electric D221NRB is a switch-disconnector with a fused mechanism designed for general duty single throw safety switch applications. It features a toggle operating mode and is equipped with lugs type terminals. This part falls under the sub-range of safety switches (General Duty) and is specified with a rated current of 30 A. It is a 2 Pole device with dimensions of 184 mm in width, 197 mm in depth, and 245 mm in height. The D221NRB supports a rated voltage (AC) for phase-to-phase connections of 240 V and has a short circuit breaking rating of 100kA maximum, which is dependent on the use of H; K or R type fuses.

Product Details

Number Of Poles
2
Electrical Connection
Lugs
Width
7.25 in (184.15 mm)
Duty Rating
General duty
Voltage Rating
240 V AC
Tightening Torque
30 lbf.in (3.39 N.m) 0.00…0.02 in² (2.08…13.3 mm²) (AWG 14...AWG 6)
Current Rating
30 A
Factory Installed Neutral
Neutral (factory installed)
Fuse Type
H, K or R
Phase
3 phase
Mounting Type
Surface
Height
9.25 in (234.95 mm)
Short Circuit Current Rating
100 kA maximum depending on fuse H, K or R
Depth
3.63 in (92.20 mm)
Enclosure Rating NEMA
NEMA 3R
Device Application
Residential
Disconnect Type
Fusible disconnect switch
Product
Single Throw Safety Switch
Wiring Configuration
3-wire
Net Weight
16.98 lb(US) (7.7 kg)

Wire Size

AWG 14...AWG 6 copper AWG 12...AWG 6 aluminium

Maximum Horse Power Rating

1.5 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6 3 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6 3 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52 7.5 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D221NRB on Powermatic Associates is $188.00. Order now.
