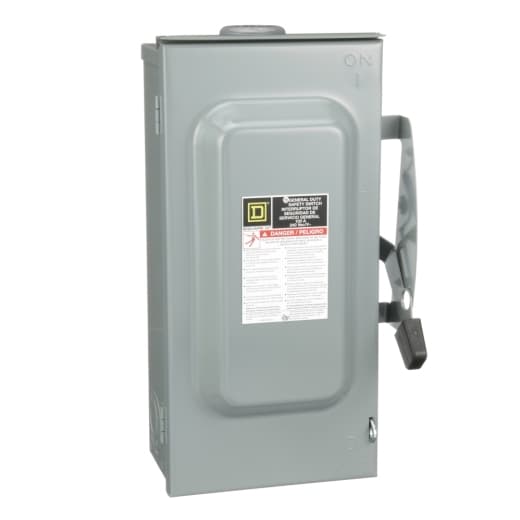

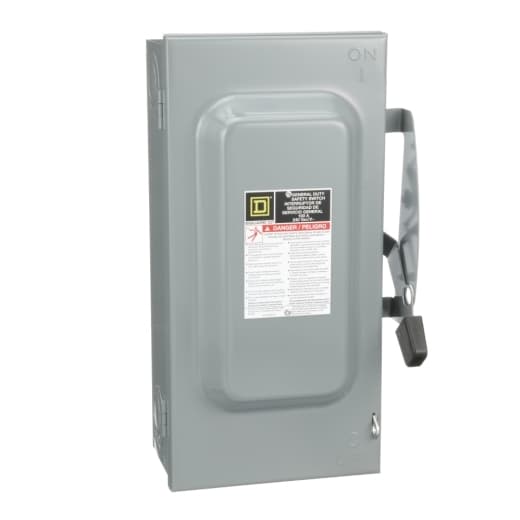

D223NRB Schneider Electric Industrial Automation Components

Product Details

• Number Of Poles
  2
• Factory Installed Neutral
  Neutral (factory installed)
• Enclosure Rating NEMA
  NEMA 3R
• Disconnect Type
  Fusible disconnect switch
• Mounting Type
  Surface
• Device Application
  Residential
• Electrical Connection
  Lugs
• Product
  Single Throw Safety Switch
• Fuse Type
  H, K or R
• Voltage Rating
  240 V AC
• Wiring Configuration
  3-wire
• Phase
  3 phase
• Short Circuit Current Rating
  100 kA maximum depending on fuse H, K or R
• Current Rating
  100 A
• Width
  10.56 in (268.22 mm)
• Duty Rating
  General duty
• Height
  17.5 in (444.50 mm)
• Net Weight
  15.43 lb(US) (7 kg)
• Depth
  6.5 in (165.10 mm)
• Wire Size
  AWG 14...AWG 1 copper AWG 12...AWG 1 aluminium
Maximum Horse Power Rating
7.5 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6 15 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6 15 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52 30 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.
Tightening Torque
35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10) 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8) 35 lbf.in (3.95 N.m) (AWG 14...AWG 10) 45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4) 50 lbf.in
