D224NRB Schneider Electric Industrial Automation Components

Name: D224NRB
Brand: Schneider Electric
Price: 1200 USD
Availability: BackOrder

Part#:D224NRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

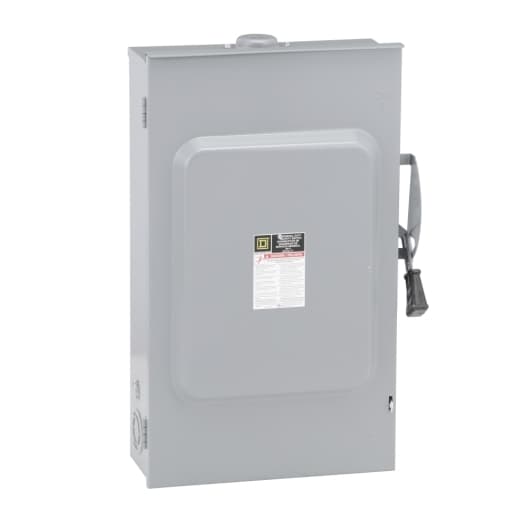

Schneider Electric D224NRB is a switch-disconnector with a fused design, specifically categorized under the general duty single throw safety switches. It features a toggle operating mode and is equipped with lugs type terminals. This part falls within the safety switches (General Duty) sub-range and is designed to handle a rated current of 200 A across 2 poles. The D224NRB has dimensions of 438 mm in width, 483 mm in depth, and 737 mm in height. It is capable of operating at a phase-to-phase rated voltage of 240 V and offers a short circuit breaking rating of up to 100kA, which varies depending on the use of H, K, or R type fuses.

Product Details

Depth
8.5 in (215.90 mm)
Current Rating
200 A
Fuse Type
H, K or R
Device Application
Residential
Mounting Type
Surface
Number Of Poles
2
Tightening Torque
275 lbf.in (31.07 N.m) (AWG 6...250 kcmil)
Disconnect Type
Fusible disconnect switch
Wire Size
AWG 6...250 kcmil aluminium/copper
Net Weight
53.51 lb(US) (24.27 kg)
Factory Installed Neutral
Neutral (factory installed)
Electrical Connection
Lugs
Phase
3 phase
Product
Single Throw Safety Switch
Duty Rating
General duty
Enclosure Rating NEMA
NEMA 3R
Width
19 in (482.60 mm)
Height
29.25 in (742.95 mm)
Voltage Rating
240 V AC
Short Circuit Current Rating
100 kA maximum depending on fuse H, K or R

Wiring Configuration

3-wire

Maximum Horse Power Rating

15 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6 25 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6 60 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.52

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D224NRB on Powermatic Associates is $1,200.00. Order now.
